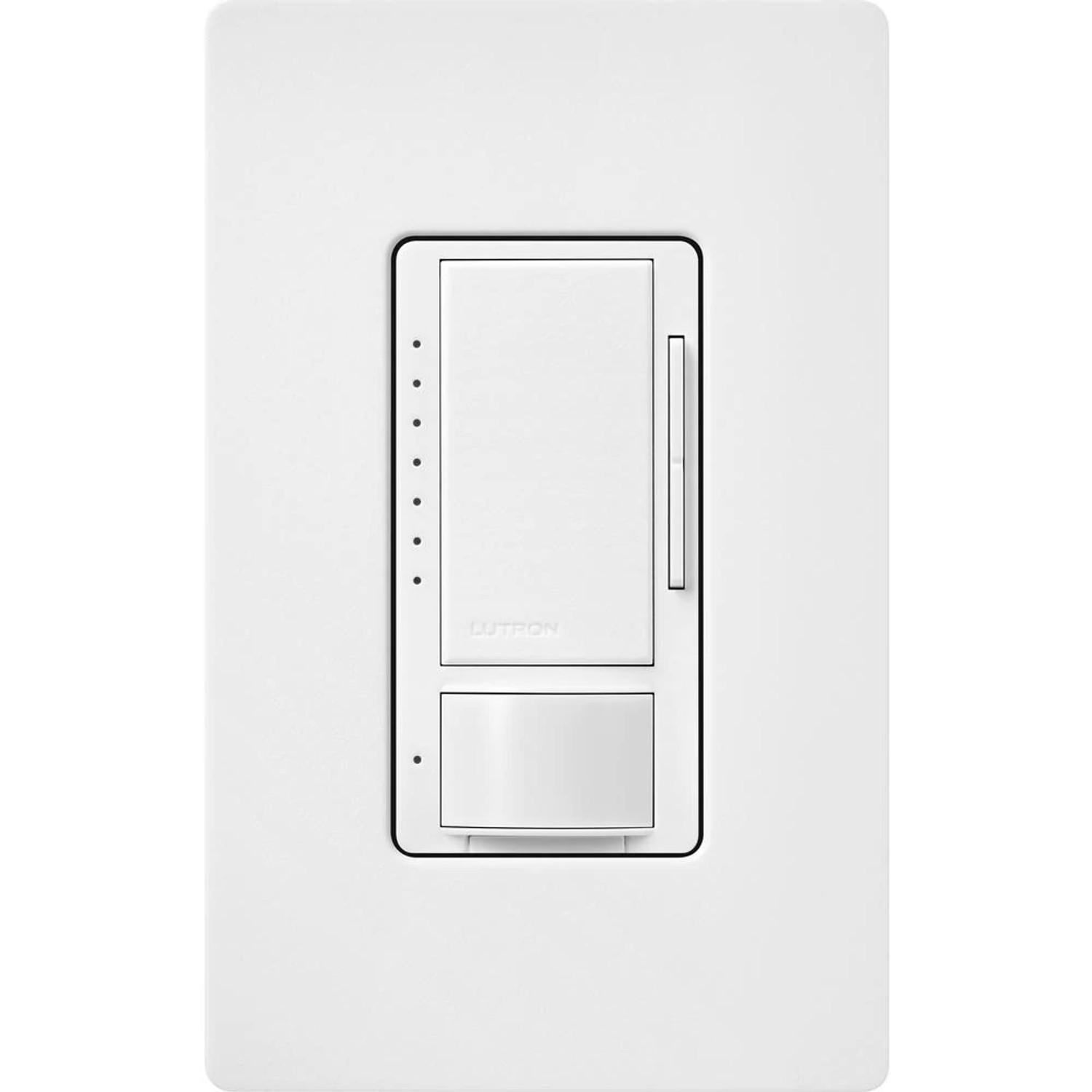

Lutron® MS-Z101-V-SW Ceiling Mount Occupancy Sensor, 120 to 277 V, Wall Mounting
Sku #78427610020
MFG #MS-Z101-V-SW
Attributes
| Voltage Rating: | 120 to 277 V |
| Lamp Type: | Vacancy Sensor Dimmer |
| Temperature Rating: | 0 to 40 deg C |
| Amperage Rating: | 8 A |
| Mounting Type: | Wall |
| Color: | Snow |
- Lighting Control
- Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current, Neutral Optional
- Screw Terminal and Wire-Lead Installation, 120V
- Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS), Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens
- https://lutron.widen.net/content/ljl01nfr11/mp4/In-wall-sensors_2021.mp4?w=2048
- UL/cUL/Title 20/24 Certified
