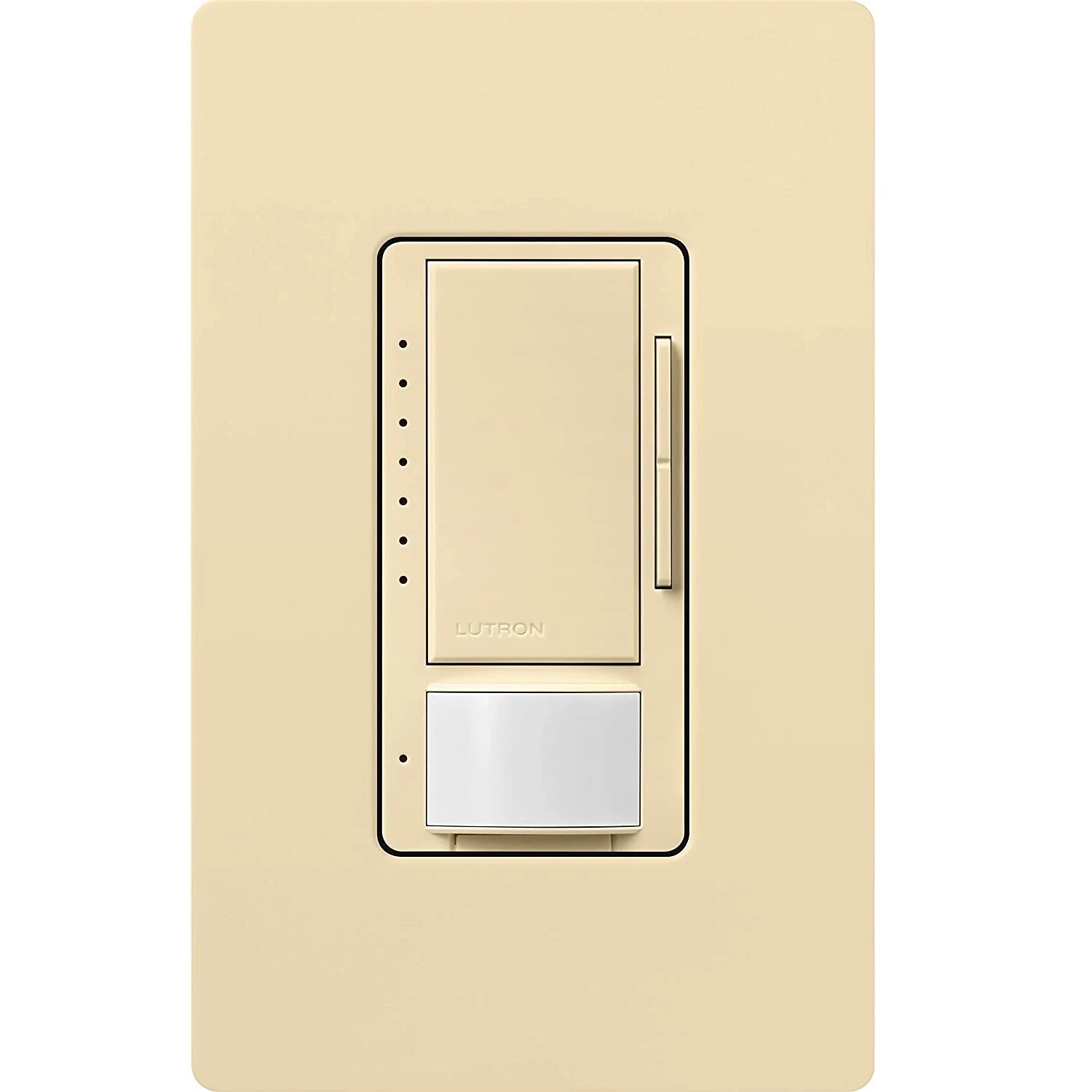

Lutron® MS-Z101-IV Maestro® 1-Pole Multi-Location Occupancy Sensing Dimmer, 120 to 277 V AC, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, Wall Mounting
Sku #78427609986
MFG #MS-Z101-IV
Attributes
| Type: | 1-Pole Multi-Location |
| Voltage Rating: | 120 to 277 V AC |
| Sensor Type: | Passive Infrared |
| Series: | Maestro® |
| Amperage Rating: | 8 A |
| Coverage: | 400 sq-ft Minor, 900 sq-ft Major |
- Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current, Neutral Optional
- Screw Terminal and Wire-Lead Installation, 120V
- Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS), Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- https://www.youtube.com/watch?v=BUG4UOLSYCs
- NEC/CEC Certified|RoHS Compliant|cULus Listed|Title 20/24 Compliant
- Private Office and Conference Room Applications
