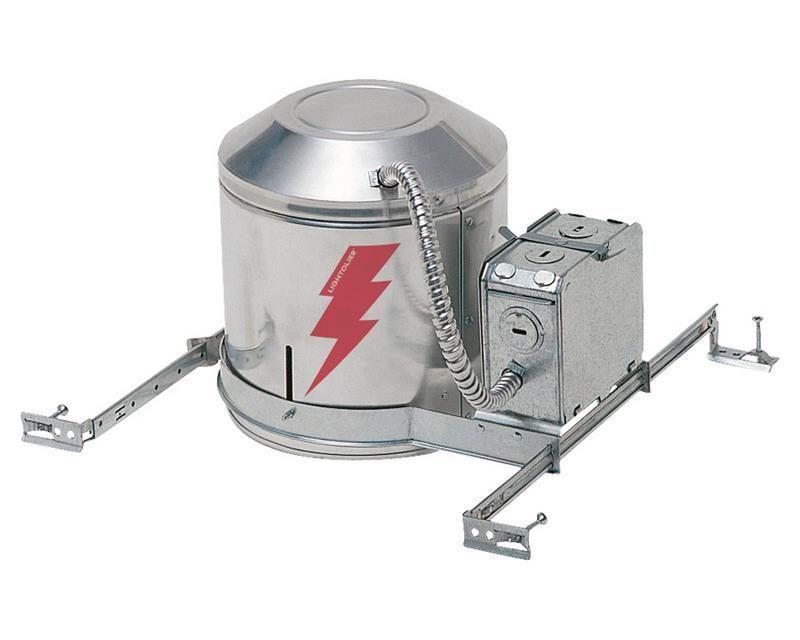

Signify Luminaires Lightolier Lytecaster® 1004IC Convertible IC/Non-IC Round Frame-In Kit, 120 V AC, 5-1/2 in Ceiling Opening, Galvanized Steel Housing
Sku #78419715929
MFG #1004IC
Attributes
| Type: | Convertible IC/Non-IC Round |
| Ceiling Opening: | 5-1/2 in |
| Number of Lamps: | 1 |
| Voltage Rating: | 120 V AC |
| Lamp Wattage: | 75 W |
| Mounting Type: | Ceiling/Recessed |
- UL Listed
- 1 x PAR30S medium E26 bulb shape
- 2 in vertical adjustment in ceiling
- Can be removed for access to junction box and ceiling plenum
- AirSeal® housing minimizes air leakage to less than 2 cfm at 1.57 PSF
- Which complies with model energy code and Washington state energy code and reduces heat loss and condensation in ceiling
- Mounting frame 18 galvanized steel
- Locks into position along length of mounting bars with locking spring and bendable slot
- Three slots 90 deg apart simplify alignment
- 22 AWG galvanized steel junction box
- AC only, minimum 90 deg supply conductors suitable for branch circuit wiring supplying connected luminaries
- Cable clamp permits attachment of non-metallic Romex® cable without tools or additional connectors
- 16 AWG galvanized steel mounting bars
- Bars pivot for easy attachment and wire-in below ceiling line
- Bars extend to accommodate 16 to 24 in OC joist spacing
- The 1004IC features integral self-tapping Philips® screws for secure attachment to wood or metal construction
- The 1004ICN features integral nails for secure attachment to wood
- Both attach to T-bar ceilings without the need of accessories
- Socket housing impact extruded aluminum or galvanized steel
- Attached trim retaining spring secures trim to any height on housing wall
- Measure 9 in OAL
- Indoor Commercial, Recessed Downlights and Damp Locations Applications
