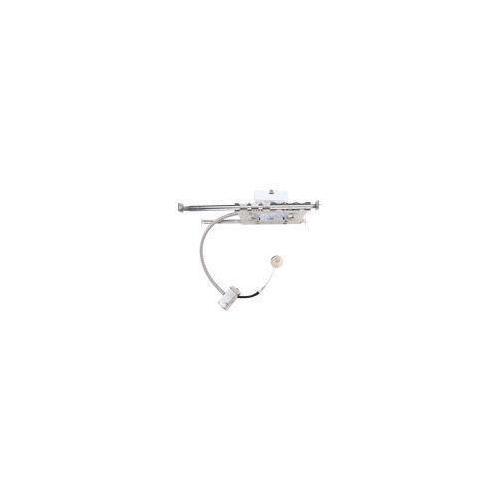

Signify Luminaires Lightolier Lytecaster® 2000LV Low Voltage Non-IC Round Standard Frame-In Kit, 120 VAC, 3-11/16 in Ceiling Opening, Galvanized Steel Housing
Sku #78419714667
MFG #2000LV
Attributes
| Type: | Low Voltage Non-IC Round Standard |
| Ceiling Opening: | 3-11/16 in |
| Number of Lamps: | 1 |
| Voltage Rating: | 120 V AC |
| Lamp Wattage: | 50 W |
| Mounting Type: | Ceiling/Recessed |
- UL Listed
- Indoor Commercial, Recessed Downlights and Damp Locations Applications
- 1 x MR16 GU5.3 (Bi-pin) bulb shape
- 20 AWG galvanized steel mounting frame
- Accommodates all ceilings up to 1 in THK push-in/twist-out rotoclips hold reflector flush to ceiling
- Junction box 14 AWG galvanized steel, 12 AWG 90 deg C through branch circuit conductors
- Integral cable clamps permit attachment of non-metallic Romex® or armored cable without need of additional connectors
- 16 AWG galvanized steel mounting bars
- 13 in L bars extend to 27 in with integral nailing tabs
- Aluminum socket housing with lamp adjustment assembly allows 35 deg maximum vertical 358 deg horizontal adjustment
- Field replaceable two pin socket, prewired with 18 AWG SF1 leads to junction box
- Outboard mounted, magnetic, 120 VAC primary and nominal 12 VAC secondary
- Thermal protector insulation must be kept 3 in away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat
- Use unshielded lamps
- 9.6 in L
- Dimming capability
