Sku #78393622201

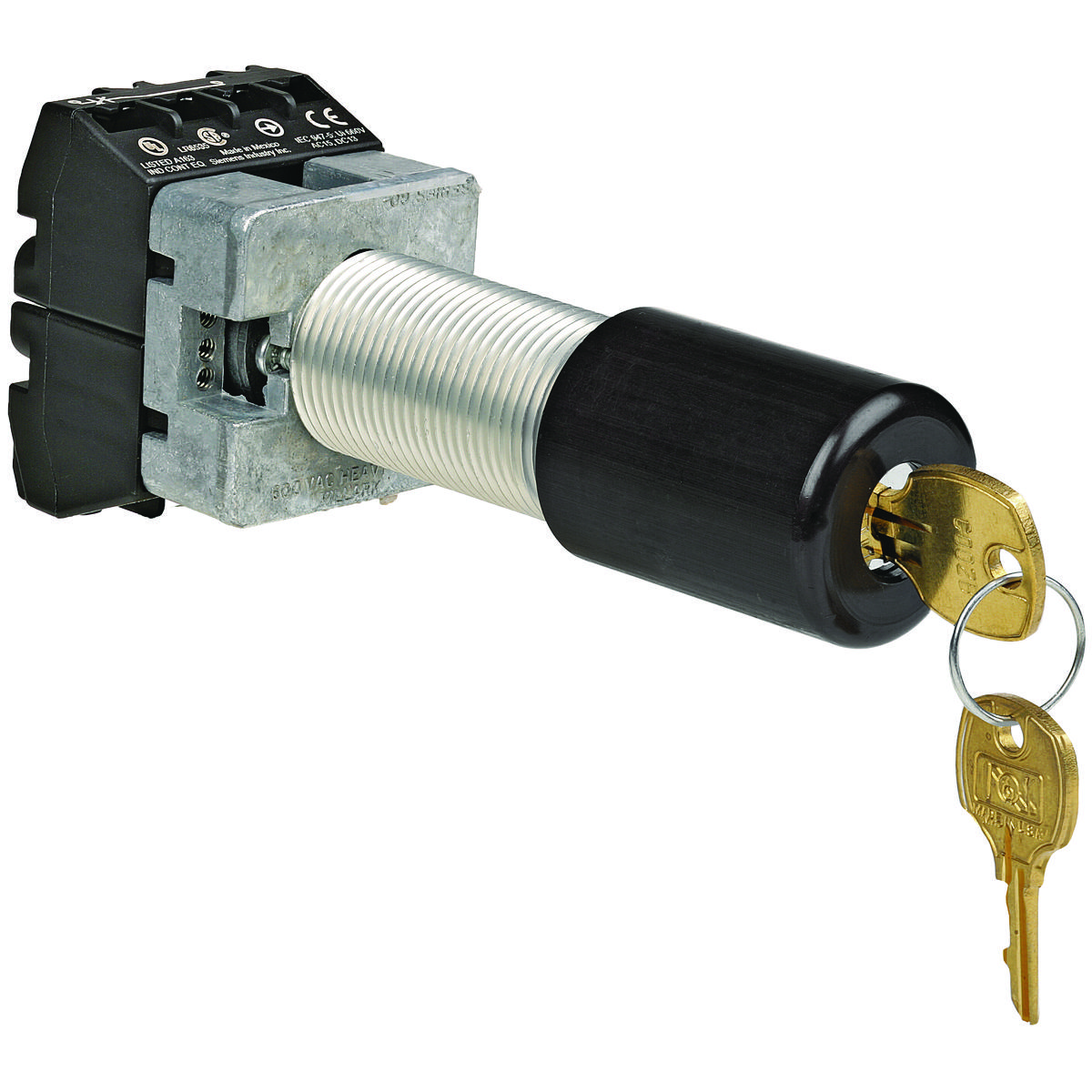

MFG #GO7-6G N34
Attributes
| Type: | 1-Pole |
| Size: | 5-5/32 in L x 1-1/4 in W x 1-1/4 in H |
| Contact Mode: | Long Spring Return |
| Series: | G Series |
| Contact Configuration: | 2NO |
| Number of Positions: | 3 |
- Operators are all aluminum except for certain movable parts which are stainless steel
- Threaded bodies are all 3/4-14 NPSM thread
- Control stations can be grouped into a single assembly thus reducing installation time and cost
- UL File No. E12379|CSA File No. LR11714, Class I, Div. 1 & 2, Groups B,C,D, Class I, Zones 1 & 2, Groups llB, llA, Class II, Div. 1 & 2, Groups E,F,G, Class Ill|NEMA 3, 4, 4X, 7(B,C,D) 9(E,F,G)
- For use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB and GCS Series boxes and B7, Y7 starter enclosures
