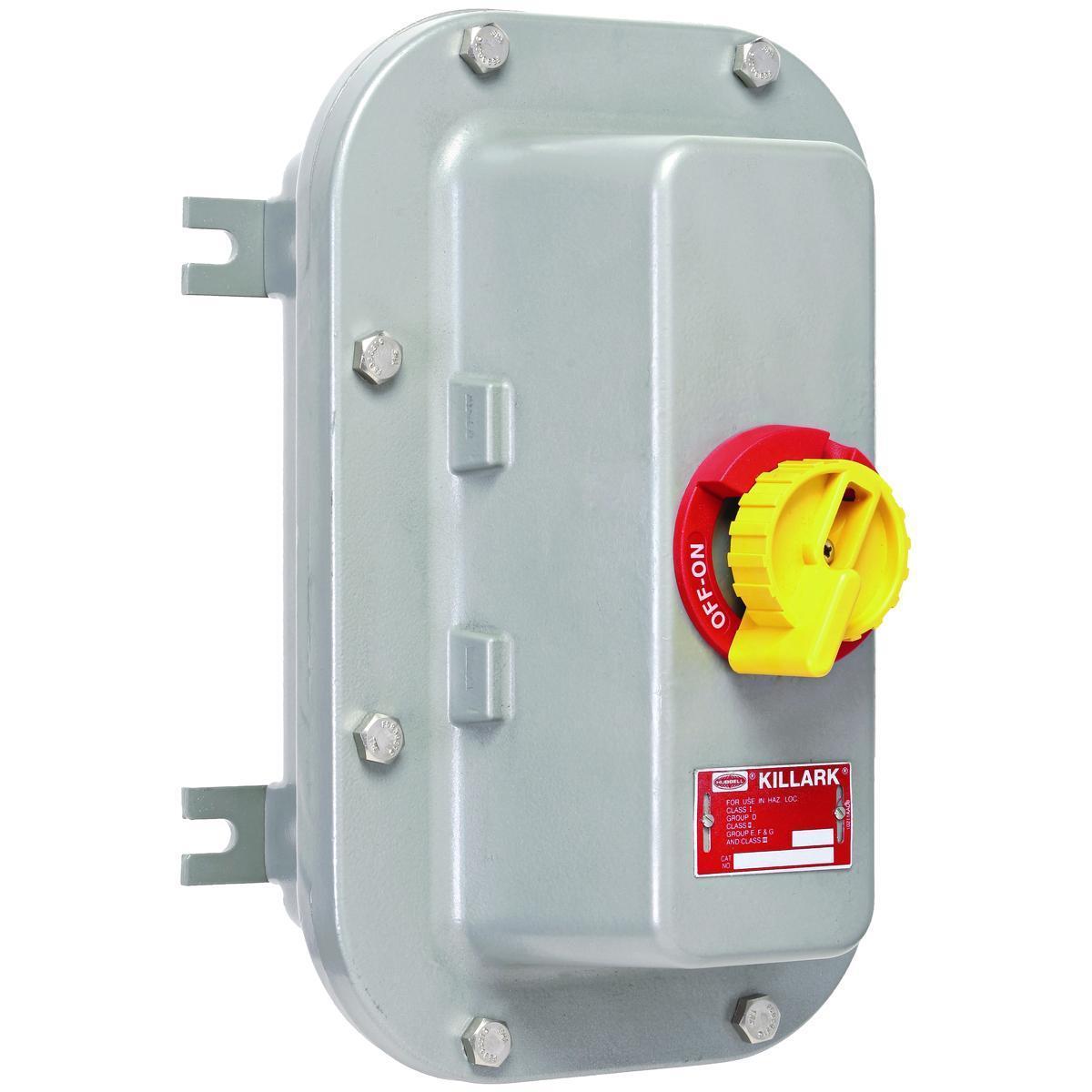

Sku #78393600977
MFG #B7NFD21A
Attributes
| Type: | Non-Fusible Compact |
| Voltage Rating: | 600 V AC/230 V DC |
| Horsepower: | 50 hp |
| Series: | B7NFD |
| Amperage Rating: | 100 A |
| Phase: | 3 |
- Used in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers and flyings, outdoors or indoors in damp, wet and dirty locations
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes
- Few cover bolts reduces installation and maintenance time
- Gasketed flange with O-ring located inside bolt circule to seal out moisture
- Rotary handle style operating mechanism with lockout provision as standard
- Removable ductile mounting lugs adjust to irregular mounting surfaces
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content)
- Cover bolts 316 Stainless Steel
- CSA File No. LR11716|Class I Divisions 1 and 2 Groups B, C, D, IIB+ H2, IIA, Zones 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov|UL 98|Class I, Div 1 and 2, Groups B, C, D, Class l, Zones 1 and 2, Groups llB+ H2, llA, Class II, Div 1 and 2, Groups E, F, G, Class III|cCSAus LR11714
