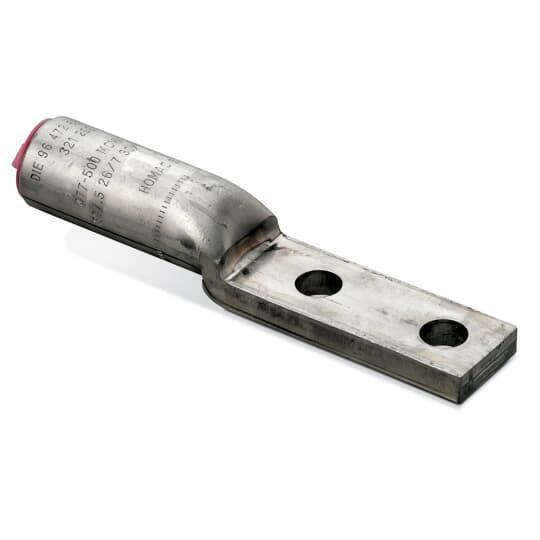

Blackburn® SA-4/0-N-90 2-Hole Dual Rated Compression Lug, 4/0 AWG to 240 kcmil, 250 to 300 kcmil ACSR/Compact/Compressed/Stranded/Aluminum/Copper Conductor, Die Code: 11A, 76, 249, 840, 845, CSA 24, TX, 1/2 in Stud, Aluminum
Sku #78378696419
MFG #SA-4/0-N-90
Attributes
| Type: | 2-Hole Dual Rated |
| Conductor Size: | 4/0 AWG to 240 kcmil, 250 to 300 kcmil |
| Stud Size: | 1/2 in |
| Conductor Type: | ACSR/Compact/Compressed/Stranded/Aluminum/Copper |
| Die Code: | 11A, 76, 249, 840, 845, CSA 24, TX |
| Tongue Type: | Pad |
- Made from aluminum for high strength and high conductivity
- Connector bores coated with oxide inhibitor to prevent oxidation
- Marked with conductor sizes and dies references
- Pink Cap and Oxide Inhibitor
- ANSI C119.4
- For installation on 125-N series insulated buses and general applications
