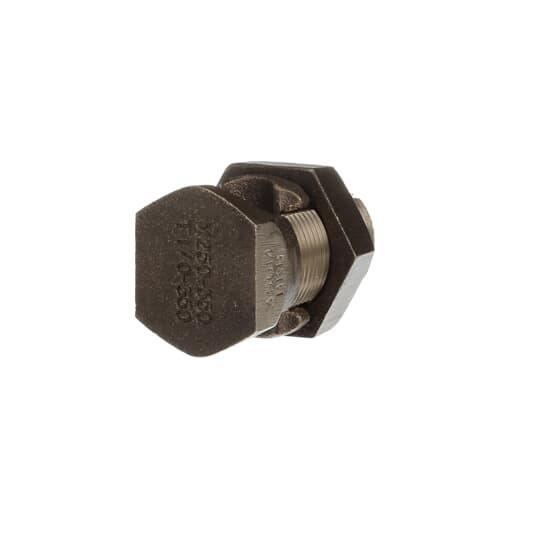

Blackburn® 350M Type H High Strength Split Bolt Connector, 250 to 350 kcmil Stranded Copper Conductor, 1-5/16 x 2-11/16 in Bolt, Bronze Alloy
Sku #78378685509
MFG #350M
Attributes
| Type: | Type H High Strength |
| Conductor Size: | 250 to 350 kcmil |
| Specifications: | 0.717 in Split, 1-21/32 in Hex Nut |
| Conductor Type: | Stranded Copper |
| Bolt Size: | 1-5/16 x 2-11/16 in |
| Material: | Bronze Alloy |
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 1/0 AWG stranded conductor range min tap with one max main
- 350 kcmil to 250 kcmil conductor range for equal main and tap
- 1 Piece/Pack
- For splicing, tapping or terminating conductors in power and grounding electrical connection
- UL E9809
