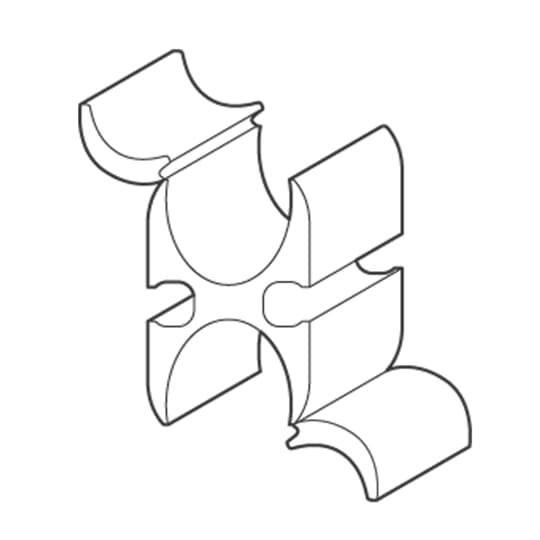

Blackburn® ZB-95440 Compression H-Tap Connector, 266.8 to 795 kcmil, 266.8 to 750 kcmil Main/Run, 4/0 AWG to 336.4 kcmil, 4/0 AWG to 350 kcmil Tap, Aluminum
Sku #78378676071
MFG #ZB-95440
Attributes
| Main/Run Size: | 266.8 to 795 kcmil, 266.8 to 750 kcmil |
| Conductor Type: | ACSR/Stranded |
| Temperature Rating: | 90 deg C |
| Tap Size: | 4/0 AWG to 336.4 kcmil, 4/0 AWG to 350 kcmil |
| Specifications: | 4-Conductors, Z or R Die Code |
| Material: | Aluminum |
- For use to dead end aluminum, ACSR or aluminum alloy conductors
- Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture
- Connectors fully marked with installation and compression location information, providing easy identification for easy installation
- Complies with ANSI C119.4 when properly installed on aluminum to aluminum or aluminum to copper conductors
- ANSI C119.4|RUS Certified
