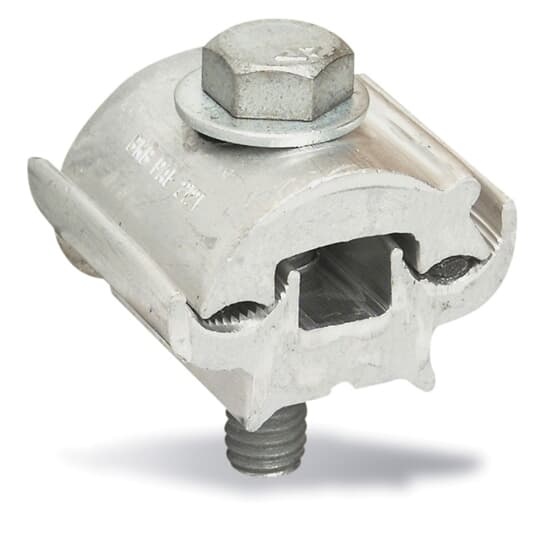

Blackburn® PAE9999-9 2-Conductor Type PAE Dual Rated Extruded Parallel Groove Clamp, ACSR/Aluminum/Copper Conductor, 397.5 to 1000 kcmil Main/Run, 397.5 to 1000 kcmil Tap, 1/2 in Bolt, Aluminum
Sku #78378633038
MFG #PAE9999-9
Attributes
| Type: | 2-Conductor Type PAE Dual Rated Extruded |
| Main/Run Size: | 397.5 to 1000 kcmil |
| Bolt Size: | 1/2 in |
| Conductor Type: | ACSR/Aluminum/Copper |
| Tap Size: | 397.5 to 1000 kcmil |
| Specifications: | 3/4 in Bolt Head, 0.743 to 1.152 in Dia Conductor Main, 0.743 to 1.152 in Dia Conductor Tap |
- Galvanized steel hardware provides high-strength for heavy duty applications
- Can be installed with live line tools you already have
- Dual-rated for aluminum to copper connections
- All seasons environmental conditions
- Prefilled with oxide-inhibitor to prevent oxidation on copper-to-aluminum connections
- 1/2-13 UNC galvanized steel bolt thread size
- 5/8-11 UNC aluminum bolt thread
- 397.5 to 1000 kcmil ACSR, 2/0 AWG to 336.4 kcmil AR main conductor range
- 397.5 to 1000 kcmil ACSR, 2/0 AWG to 336.4 kcmil AR tap conductor range
- Bolted connection
- For securing conductor applications
