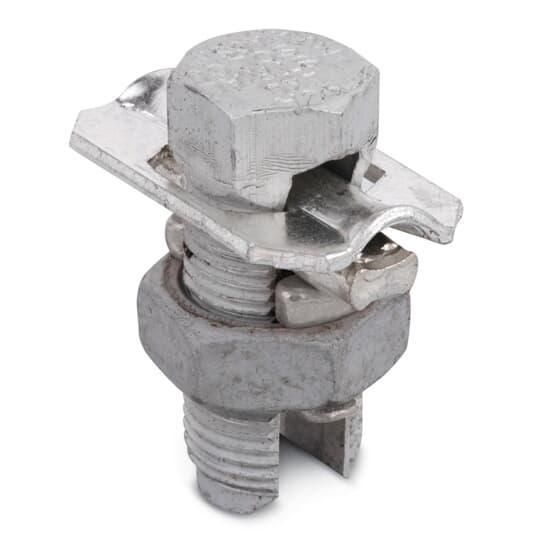

Blackburn® 40CA Type CA Split Bolt Connector With Spacer, Washer, 2/0 to 4/0 AWG Solid/Stranded Aluminum/Copper Conductor, 1 x 2-15/32 in, Aluminum
Sku #78378620058
MFG #40CA
Attributes
| Type: | Type CA |
| Conductor Size: | 2/0 to 4/0 AWG |
| Specifications: | 0.58 in Split, 1-1/4 in Hex Nut |
| Conductor Type: | Solid/Stranded Aluminum/Copper |
| Bolt Size: | 1 x 2-15/32 in |
| Material: | Aluminum |
- Bolt, nut and washer made of high-strength aluminum alloy
- Pressure bar and contoured spacer made of electrolytic copper
- Spacer is completely tin plated
- Bolt and nut are anodized to prevent seizing of threads and reduce galvanic corrosion when in contact with copper conductor
- Blackburn® contax paste recommended with the connector
- 4/0 AWG stranded to 4 AWG solid conductor range min tap with one max main
- 4/0 AWG stranded to 2/0 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
- For splicing, tapping or terminating conductors in power and grounding electrical connection
- UL File No. E9809|CSA Certified
