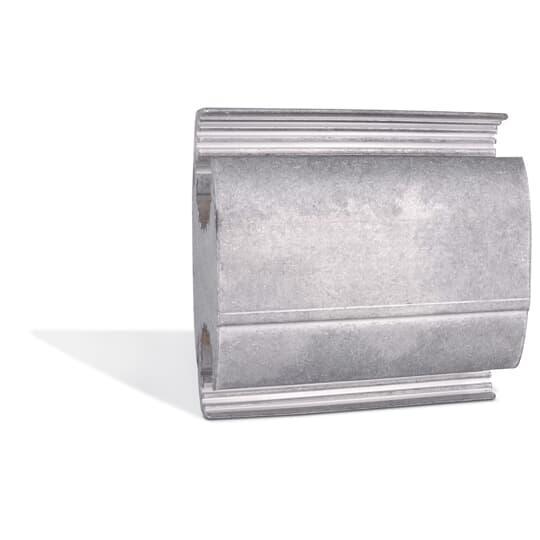

Blackburn® WR999 Type H Wide Range Compression Tap Connector, H Shape, 954 45/7 to 666 kcmil, 750 to 1033 kcmil Main/Run, 954 45/7 AWG to 666 kcmil, 750 to 1033 kcmil Stranded Tap, Aluminum
Sku #78378610370
MFG #WR999
Attributes
| Type: | Type H Wide Range |
| Shape: | H |
| Tap Size: | 954 45/7 AWG to 666 kcmil, 750 to 1033 kcmil Stranded |
| Series: | WR Series |
| Main/Run Size: | 954 45/7 to 666 kcmil, 750 to 1033 kcmil |
| Conductor Type: | ACSR/Stranded |
- Made of 1350 aluminum alloy for high strength and high conductivity
- Standard compression tools and dies install all sizes no special tools needed
- Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor shape
- Fold-in tabs provide tab interlock as tool closes
- Prefilled with oxide inhibitor held captive in the rib/connection area
- Compression/crimp connection
- 2/0 AWG ACSR, 2/0 to 3/0 AWG stranded main conductors
- 2 to 1/0 AWG ACSR, 1 to 1/0 AWG stranded tap conductors
- For combination of aluminum to aluminum and aluminum to copper conductors
- ANSI C119.4|RUS Accepted
