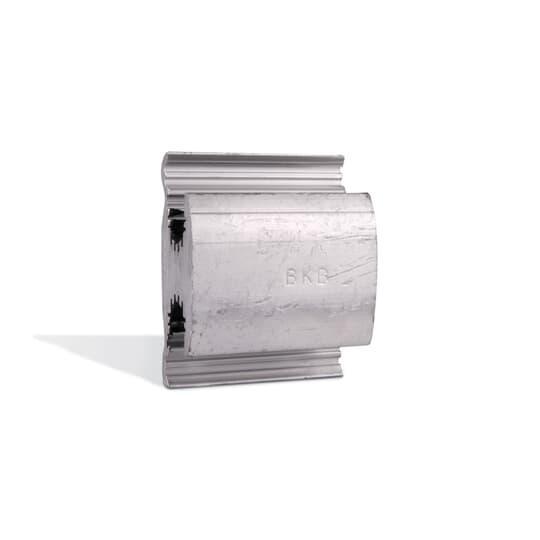

Blackburn® WR299 Type WR Wide Range Compression H-Tap Connector, H Shape, 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded Main/Run, 6 to 4 AWG ACSR, 6 to 3 AWG Stranded, 6 to 2 AWG Solid Tap, Aluminum
Sku #78378610005
MFG #WR299
Attributes
| Type: | Type WR Wide Range |
| Main/Run Size: | 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded |
| Conductor Type: | ACSR/Aluminum/Copper/Solid/Stranded |
| Shape: | H |
| Tap Size: | 6 to 4 AWG ACSR, 6 to 3 AWG Stranded, 6 to 2 AWG Solid |
| Specifications: | D, D3 Die Code, 0.398 to 0.47 in Dia Main Conductor, 0.162 to 0.266 in Dia Tap Conductor, 2-Conductor |
- Made of 1350 aluminum alloy for high strength and high conductivity
- Standard compression tools and dies install all sizes no special tools needed
- Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor shape
- Fold-in tabs provide tab interlock as tool closes
- Prefilled with oxide inhibitor held captive in the rib/connection area
- Compression/crimp connection
- For combination of aluminum to aluminum and aluminum to copper conductors
- ANSI C119.4|BAA Compliant|RUS Accepted
