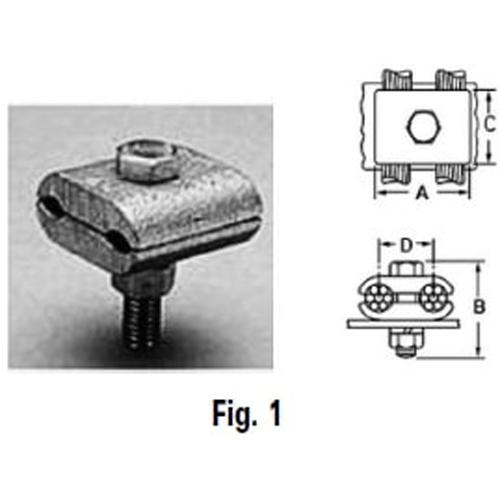

ILSCO® PermaGround™ GH-5 2-Wire Type GH Ground Clamp Connector With 5/8 in Silicon Bronze Bolt, Nut and Lock Washer, 500 to 750 kcmil Conductor, Copper Alloy
Sku #78366999719
MFG #GH-5
Attributes
| Type: | 2-Wire Type GH |
| Material: | Copper Alloy |
| Country of Origin: | US |
| Conductor Size: | 500 to 750 kcmil |
| Dimensions: | 3-3/8 in H x 3-1/4 in W x 2-3/8 in D |
- For direct burial in earth or concrete
- Mountable for surface up to 1/4 in THK
- UL 467 listed for grounding and bonding up to 250 kcmil
- Provides maximum conductivity
- For clamping conductors to flat surfaces
- Fits standard grounding bus bar and various flat plate metal surfaces
- cULus 8M24/UL 467|PROP65: it is not known to contain any chemicals associated with this regulation
