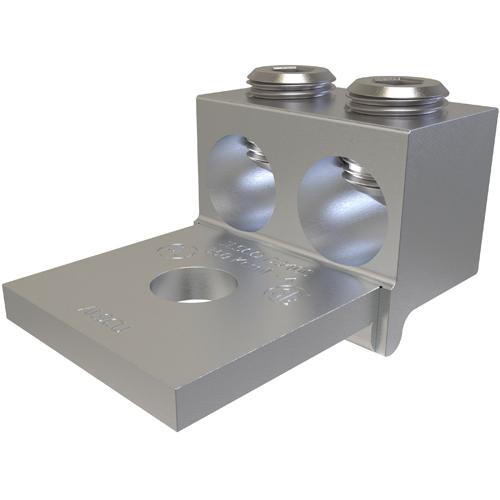

ILSCO® ClearChoice® ATAU-350-12 Type ATAU Anti-Turn Dual Rated Mechanical Lug, 4 AWG to 350 kcmil Copper/Aluminum Conductor, 1/2 in Stud, 1 Bolt Holes, Aluminum Alloy
Sku #78366999221
MFG #ATAU-350-12
Attributes
| Type: | Type ATAU Anti-Turn Dual Rated |
| Conductor Size: | 4 AWG to 350 kcmil |
| Number of Bolt Holes: | 1 |
| Conductor Type: | Copper/Aluminum |
| Stud Size: | 1/2 in |
| Tongue Size: | 1.687 in L x 1.75 in W x 0.25 in THK |
- Manufactured from high strength aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry for easy conductor insertion
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Anti-rotation bar reduces risk of movement at installation
- UL 453G/486A/B/File No. E6207|CSA File No. LR29601
