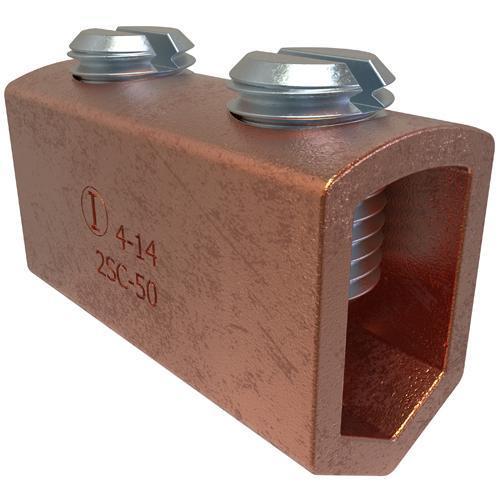

ILSCO® ClearChoice® 2SC-50 Type 2SC Splicer/Reducer, 14 to 4 AWG Copper Conductor, 2 Screws, Copper
Sku #78366997080
MFG #2SC-50
Attributes
| Type: | Type 2SC |
| Conductor Size: | 14 to 4 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Copper |
| Number of Screws: | 2 |
| Specifications: | Slotted Hex, Slotted Headless Screw |
- Manufactured from electrolytic seamless copper tubing provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Re-usable
- Provides efficient use and flexibility in the field
- V-bottom collar with serrations
- Wires are held securely between set screws and V-bottom providing superior pullout strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- For copper conductor only
- UL 486A/486B/453G File No. E6207|PROP65: it is not known to contain any chemicals associated with this regulation
- For light duty applications
