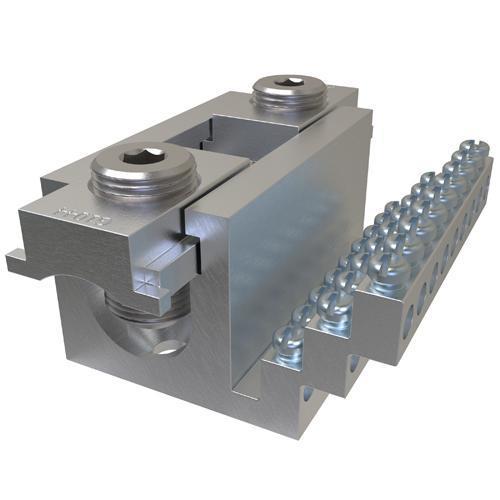

ILSCO® Solar® SCNL-27 Type SCNL Lay-In Solar Combiner Node, 14 to 10 AWG, 14 to 4 AWG Solid Copper/Aluminum Conductor, Aluminum Alloy
Sku #78366996033
MFG #SCNL-27
Attributes
| Type: | Type SCNL Lay-In |
| Conductor Size: | 14 to 10 AWG, 14 to 4 AWG |
| Material: | Aluminum Alloy |
| Conductor Type: | Solid Copper/Aluminum |
| Specifications: | (1) 27 or (2) 54 Main Ports, 1/2-Conductor/Port Main, 1/0 AWG to 750 kcmil Tap Conductor Range, 2.3 in Mount Hole Spacing |
| Finish: | Electro Tin Plated |
- Manufactured from high strength aluminum alloy provide maximum conductivity and strength for copper and aluminum conductors
- 27 inputs and 1 output for application versatility configuration
- 14 to 4 AWG input accepts class B and C conductors
- 1/0 AWG to 750 kcmil output accepts class B and C conductors
- Designed for insulators up to 2000 VAC
- Mounting hardware fits variety of commercial insulators
- For unfused PV source inputs up to 420 A copper, 340 A aluminum
- When two conductors are used they must be of equal composition
- (1) 14 to 10 AWG solid, 14 to 4 AWG or (2) 14 to 10 solid, 14 to 4 AWG conductor
- (2) 5/16 in Dia, 5/16 in D Flat-Head Screw
- cLRus Listed|UL/cUL 486A/B/File No. E6207
