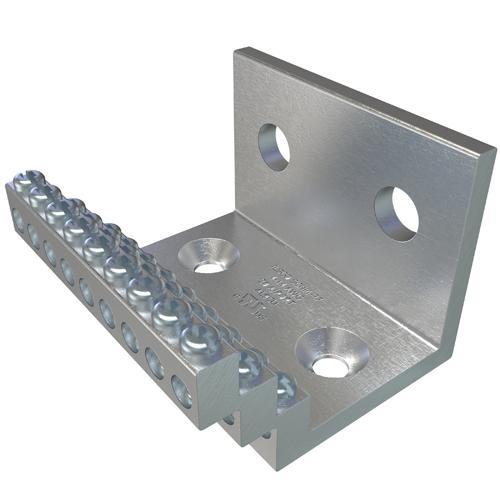

ILSCO® Solar® SCNM-27 Type SCNM Solar Combiner Node, 14 to 10 AWG, 14 to 4 AWG Solid Copper/Aluminum Conductor, Aluminum Alloy
Sku #78366996032
MFG #SCNM-27
Attributes
| Type: | Type SCNM |
| Conductor Size: | 14 to 10 AWG, 14 to 4 AWG |
| Material: | Aluminum Alloy |
| Conductor Type: | Solid Copper/Aluminum |
| Specifications: | (27) Main Ports, 1 to 4 Tap Ports, Slotted Hex, 2 in Mounting Hole Spacing, 1-3/4 in Mounting Hole Spacing Tap |
| Finish: | Electro Tin Plated |
- Manufactured from high strength aluminum alloy provide maximum conductivity and strength for copper and aluminum conductors
- 18 to 42 string inputs, 4 outputs configuration for application versatility
- 6 AWG to 1000 kcmil tap, 14 to 10 solid/14 to 4 AWG main conductor range
- 14 to 4 AWG input accepts class B and C conductors
- 6 AWG to 1000 kcmil, output accepts class B, C, G, H, I, K, M and DLO conductors conductor output
- Designed for insulators up to 2000 VAC mounting hardware fits variety of commercial insulators
- For unfused PV string inputs, 30 A per string
- cLRus Listed|UL 486A/B/File No. E6207
- For use with mechanical/compression components
- (2) 5/16-18 UNC x 1/2 Screw
