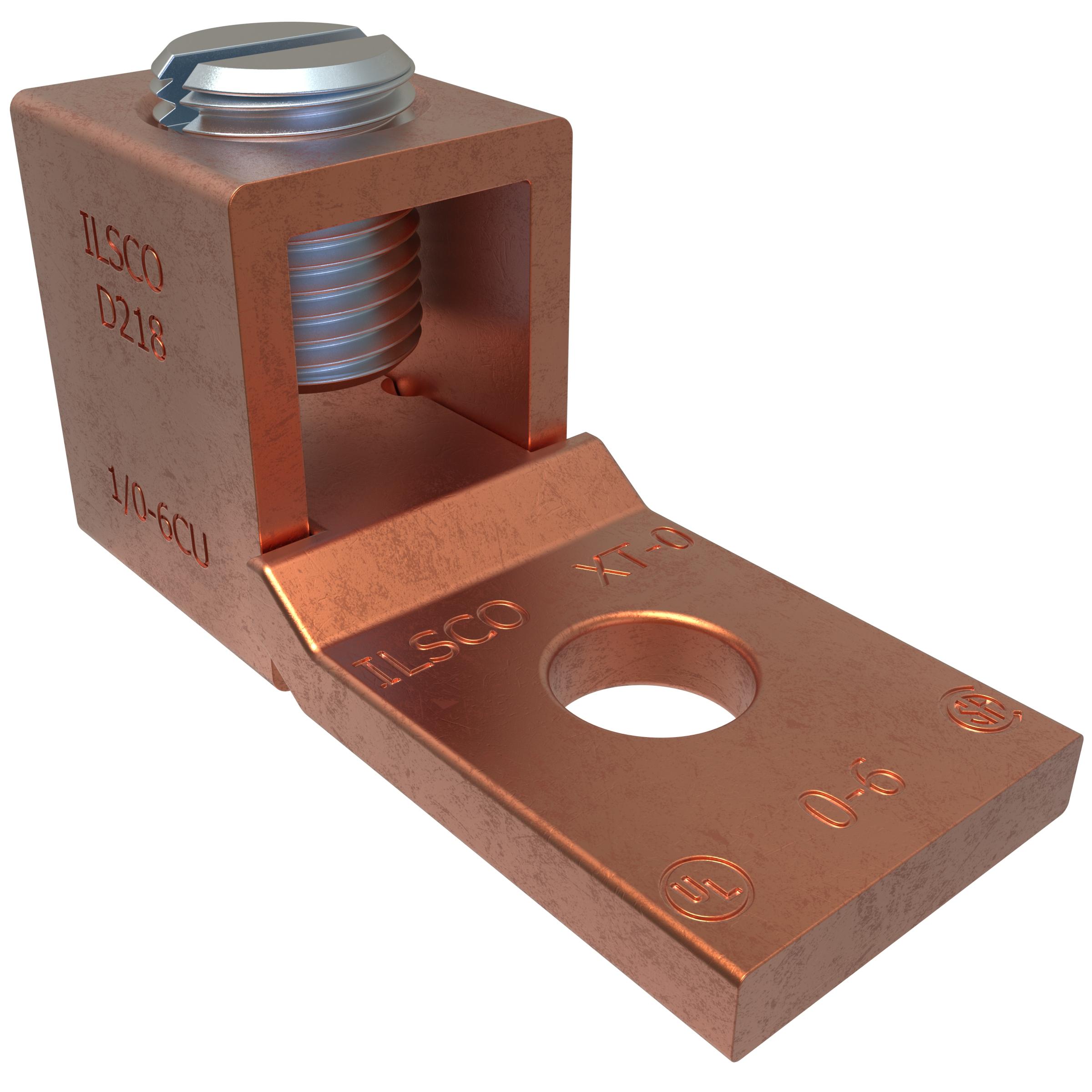

ILSCO® ClearChoice® XT-0 Mechanical Lug, 6 to 1/0 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
Sku #78366995739
MFG #XT-0
Attributes
| Series: | XT Series |
| Conductor Size: | 6 to 1/0 AWG |
| Number of Bolt Holes: | 1 |
| Conductor Type: | Copper |
| Stud Size: | 1/4 in |
| Tongue Size: | 0.9063 in L |
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- A - UL listed combinations (2) 14 AWG stranded or (2) AWG 12 stranded or (2) AWG 10 stranded or (2) 8 AWG stranded and (4) 16 AWG stranded conductor size
- B - UL listed combinations (2) 6 AWG stranded and (2) 8 AWG stranded conductor size
- CSA File No. LR-29601|UL 486A/B/453G|E6207
- For terminating connector
