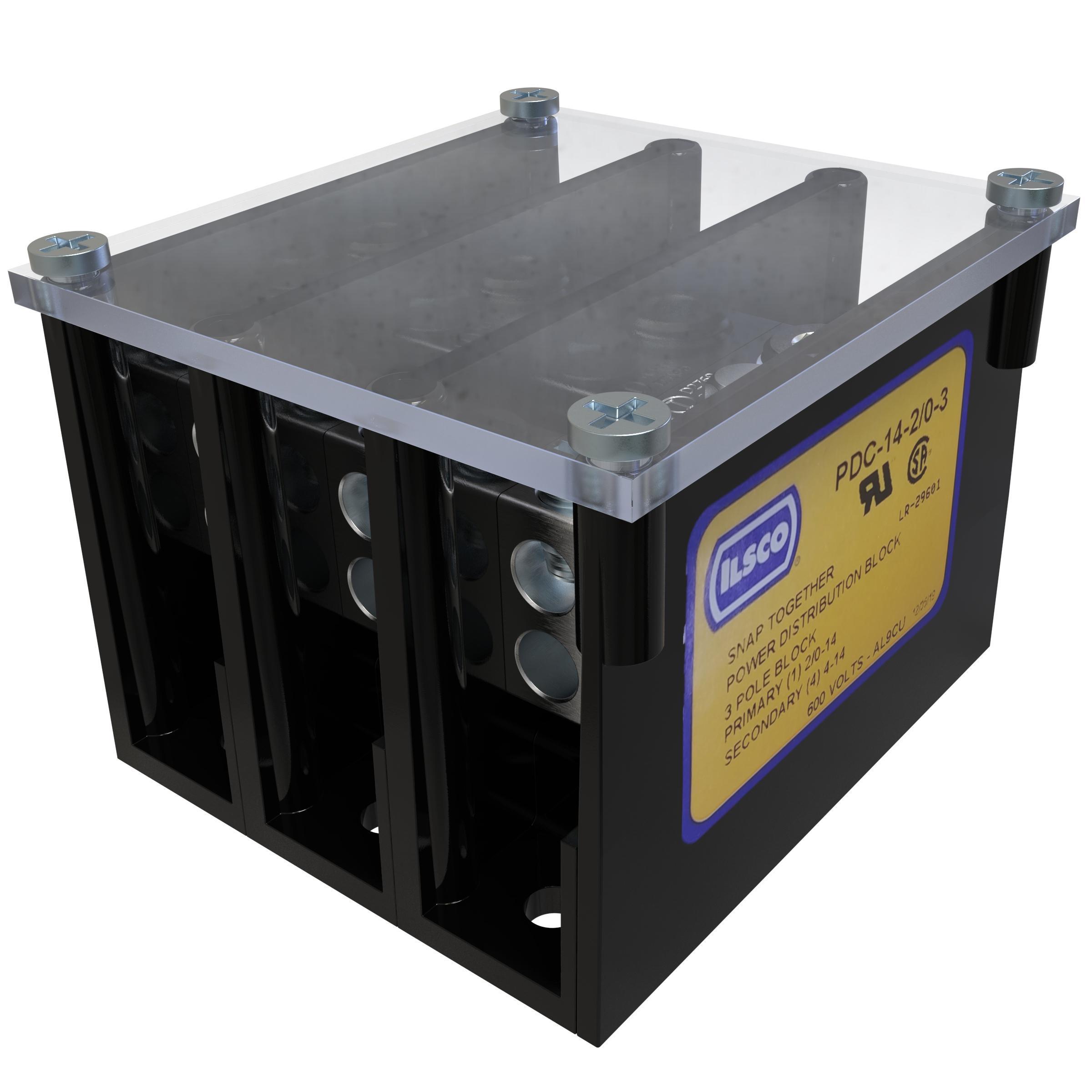

ILSCO® ClearChoice® PDC-14-2/0-3 Type PDC Dual Rated Small Power Distribution Block, 600 V AC, 175 A, 3 Poles, 14 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
Sku #78366994310
MFG #PDC-14-2/0-3
Attributes
| Type: | Type PDC Dual Rated Small |
| Amperage Rating: | 175 A |
| Primary Connections/Pole: | 1 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 3 |
| Secondary Connection/Pole: | 4 |
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Small size
- Manufactured from high strength 6061-T6 aluminum alloy
- Lexan® insulating base
- Lexan® is a registered trade name of the general electric company
- PDA are added to PDC to obtain a multi-pole block
- 90 deg C temperature rating
- 3/16 in hex primary, slot hex secondary
- (1) box lug primary, (4) box lug secondary
- 14 to 2/0 AWG primary and 14 to 4 AWG secondary wire
- Modular design for ease of assemble
- UL assigned short circuit current rating
- CSA File No. LR29601|UL 1953 File No. E84782|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Tap Connector Applications
