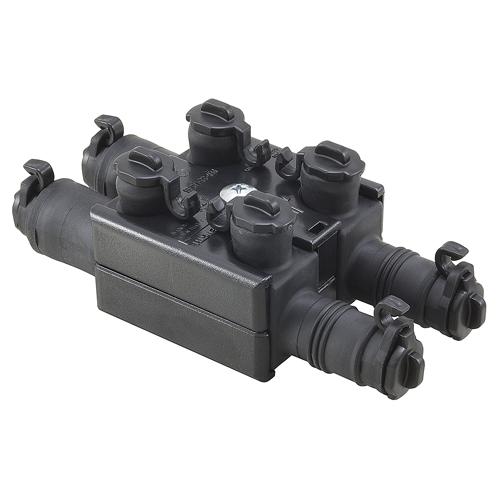

ILSCO® Streetwise® PEDSS USPA22-1/0SS-DB Type USPASS 2-Port Dual Rated Direct Bury Street Light Connector, 1/0 to 14 AWG Copper/Aluminum Conductor, Aluminum
Sku #78366994115
MFG #USPA22-1/0SS-DB
Attributes
| Type: | Type USPASS 2-Port Dual Rated Direct Bury |
| Conductor Size: | 1/0 to 14 AWG |
| Temperature Rating: | 90 deg C |
| Conductor Type: | Copper/Aluminum |
| Voltage Rating: | 600 V |
| Material: | Aluminum |
- Environmentally sealed design
- Watertight encapsulated with high dielectric strength polymer
- Manufactured from high strength aluminum alloy
- Interchangeable wire and screw port plugs
- Cap retention hook tethered for re-insertion
- Wire way seals with pre-marked trim locations
- Touch safe, no taping required
- Easily accessible in small hand holes
- Application versatility
- Simply cut pre-marked end inserts to appropriate size and insert conductor into connector
- O-ring design screw cap inserts ensure connector integrity while allowing ease of access to set screws
- Range taking to reduce inventory
- CSA File No. LR-29601|ECCN: EAR99|UL Control No. 88X4|UL File No. E125087|UL/cULus Listed|UL/cUL 486D|UL File No. 486D|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and amp; Reproductive harm. For more information go to www.p65warnings.ca.gov
- For low voltage applications and direct burial in earth or concrete, for use with copper or aluminum conductors
