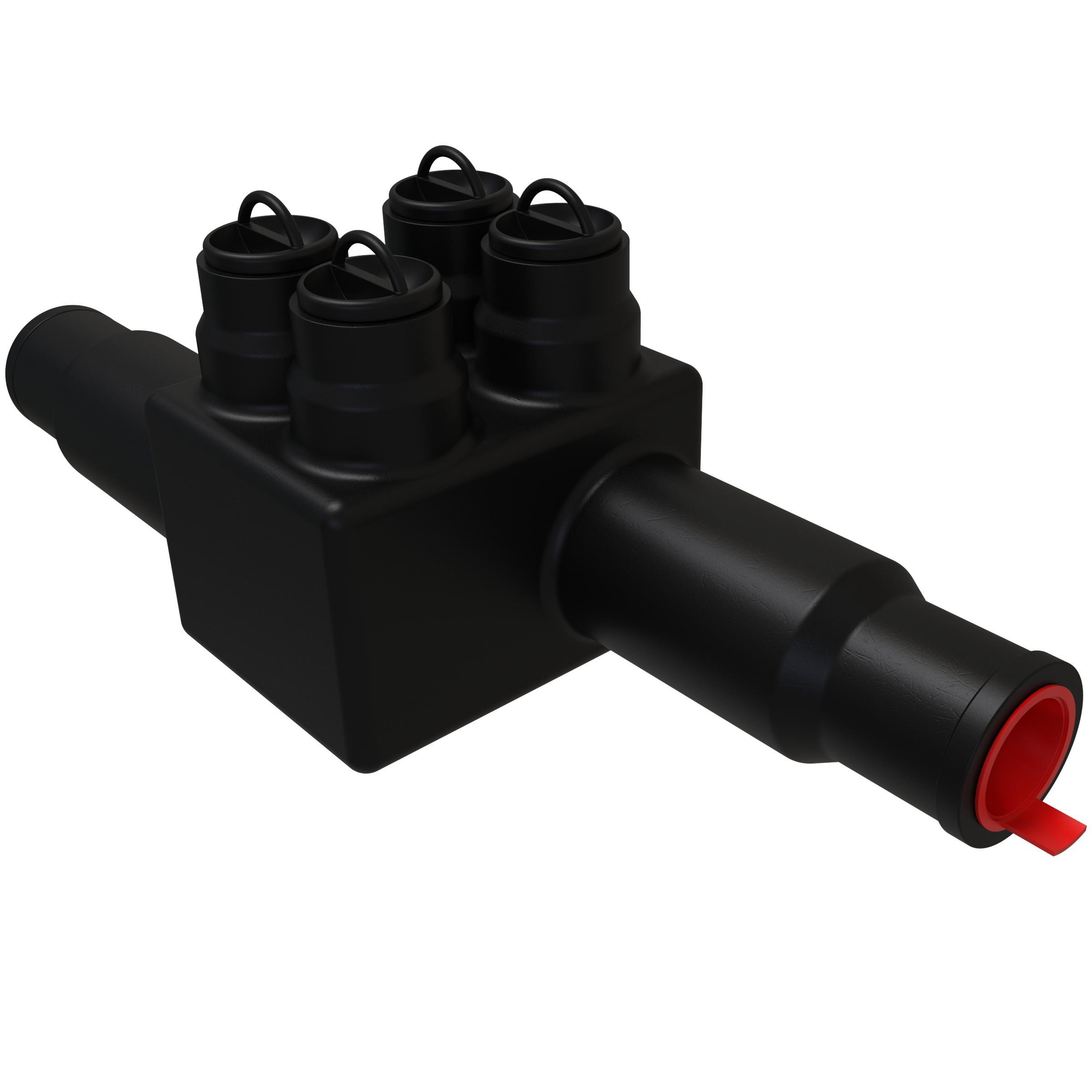

ILSCO® SafetySub® USPA-750SS-DB Type USPA-SS Dual Rated In-Line Waterproof Splice, 2 AWG to 750 kcmil Aluminum/Copper Conductor, Aluminum
Sku #78366994114
MFG #USPA-750SS-DB
Attributes
| Type: | Type USPA-SS Dual Rated |
| Conductor Size: | 2 AWG to 750 kcmil |
| Specifications: | 500 in-lb Torque, 5/16 in Hex |
| Conductor Type: | Aluminum/Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | 90 deg C |
- Encapsulated in EPDM rubber with a nominal thickness of 125 mil and a dielectric strength of 240 V/mil
- Pre-marked end insert allows broad wire range
- O-ring design screw cap inserts
- Connector is produced from high strength 6061-T6 aluminum alloy
- Range taking reduces inventory
- Dual rated for aluminum and copper conductor
- Connector has solid wire stop
- Simply cut end inserts to appropriate marked wire size and insert conductor into connector
- Ensures connector integrity while allowing ease of access to set screws, ensuring excellent sealing
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- For direct burial in earth or concrete
- CSA LR-29601|UL 486D/88X4/E125087|ANSI 119.1/119.4|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
