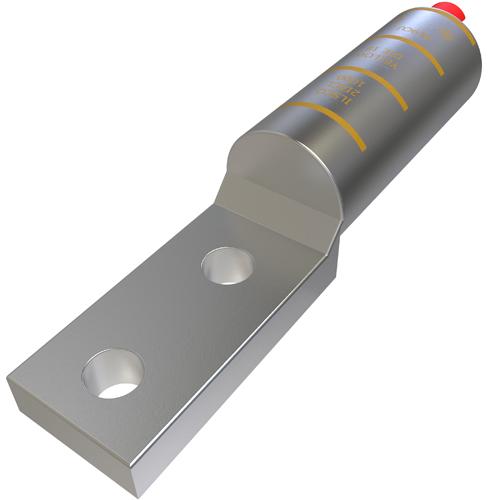

ILSCO® ClearChoice® 2IACL-1000 2IACL 2-Hole Dual Rated Lug Compression Connector, 1000 kcmil Aluminum/Copper Conductor, Die Code: 18, 1/2 in Stud, Aluminum
Sku #78366992950
MFG #2IACL-1000
Attributes
| Type: | 2-Hole Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 18 |
| Series: | 2IACL |
| Conductor Size: | 1000 kcmil |
| Voltage Rating: | 600 V AC |
- For terminating connector
- 1-3/4 in in mounting hole spacing, 1 and 2 Hole, Wire range when installed with IDT-12-N tool is 1000 kcmil-750 kcmil
- Manufactured from high strength aluminum alloy
- Four OD sizes accommodate a wire range from 4 AWG to 600 kcmil
- Pre-filled with DE-OX®
- Color coded end caps inserted in barrel and ink marked with die number and number of crimps
- Electro-tin plated
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- Provides maximum conductivity and excellent crimping characteristics
- Requires only four installation dies to crimp eleven conductor sizes, tang width remains constant within an OD size and is designed to fit transformer pads
- Provides easy conductor insertion
- Prevents oxides from forming
- Prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Provides low contact resistance
- Ensures reliability
- Application versatility
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 KV
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, IDT-12, IDT-12H
- ILSCO® connectors are UL Listed with ILSCO® or other manufacturers' tools
- 1-3/4 in in mounting hole spacing, 1 and 2-hole, wire range when installed with IDT-12-N tool is 1000 kcmil to 750 kcmil
- UL 453G|CSA LR-29601|PROP65: it is not known to contain any chemicals associated with this regulation
