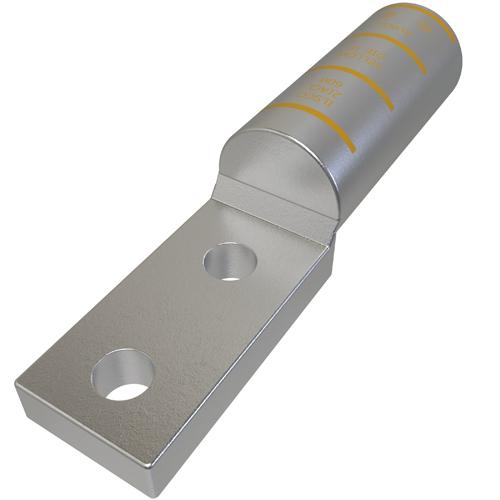

ILSCO® ClearChoice® 2IACL-600 2-Hole Type IACL Lug Compression Connector, 600 kcmil Aluminum/Copper Conductor, Die Code: 18, 1/2 in Stud, Aluminum Alloy
Sku #78366992946
MFG #2IACL-600
Attributes
| Type: | 2-Hole Type IACL |
| Conductor Size: | 600 kcmil |
| Voltage Rating: | 600 V AC |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 18 |
| Stud Size: | 1/2 in |
- UL 486A/B/453G File No. E6207|CSA File No. LR29601
- Manufactured from high strength aluminum alloy and electro-tin plated
- Chamfered barrel and Pre-filled with De-ox®
- Color coded ink marked with die number and number of crimps
- Impact extruded, seamless barrel
- 500 kcmil sizes and higher may be mounted side by side
- Four OD sizes accommodate a wire range from 4 AWG to 600 kcmil
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Terminating connector
