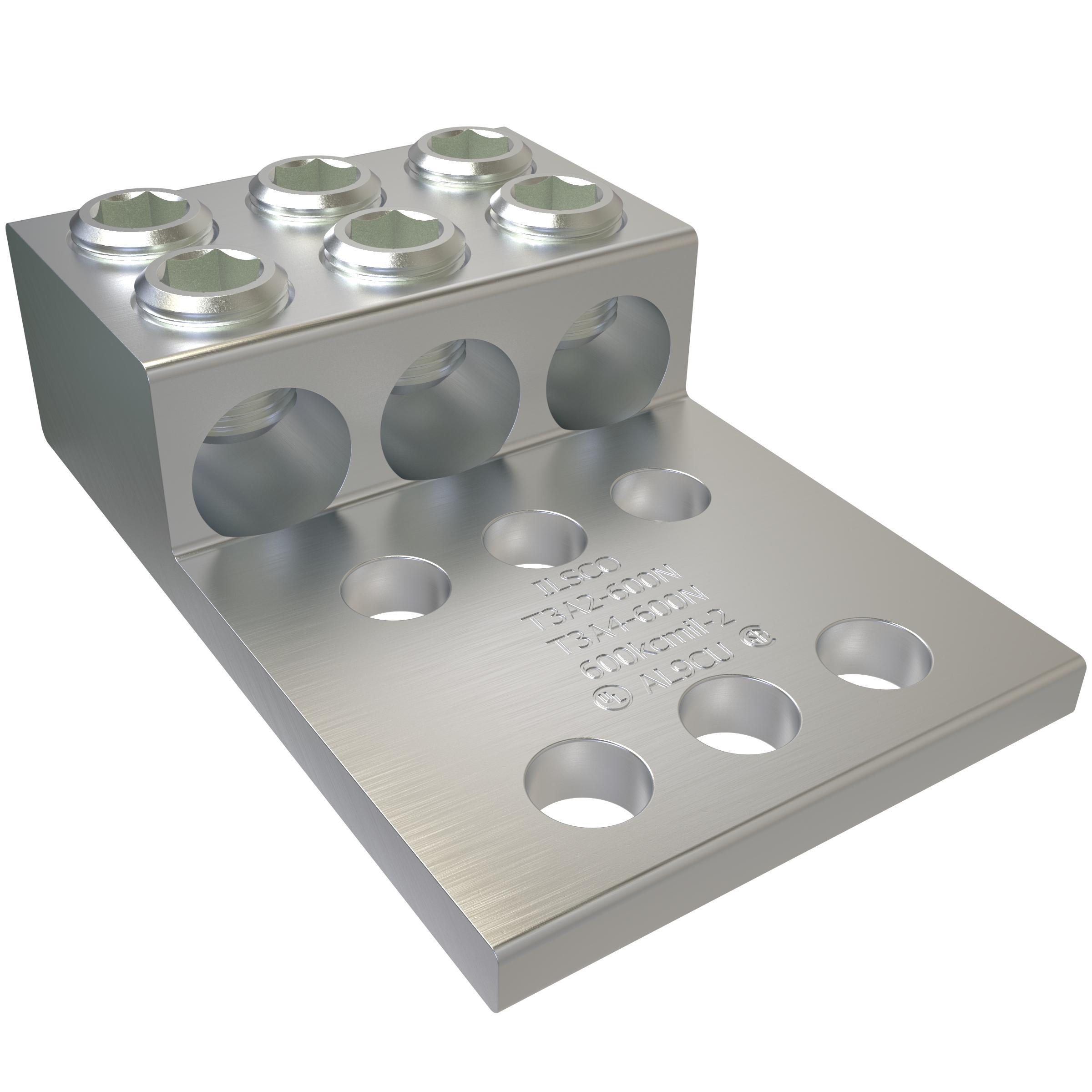

ILSCO® ClearChoice® T3A4-600N 3-Conductor Dual Rated Mechanical Terminal Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 6 Bolt Holes, 6061-T6 Aluminum Alloy
Sku #78366990960
MFG #T3A4-600N
Attributes
| Type: | 3-Conductor Dual Rated |
| Conductor Type: | Aluminum/Copper |
| Stud Size: | 1/2 in |
| Series: | T3A |
| Conductor Size: | 2 AWG to 600 kcmil |
| Number of Bolt Holes: | 6 |
- Terminating Connector Applications
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Must be mounted with a minimum of 2-bolts
- Mounting hole spacing from side to side, hole to hole is 7/8 in
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- Suitable for use with either copper or aluminum conductors
- CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
