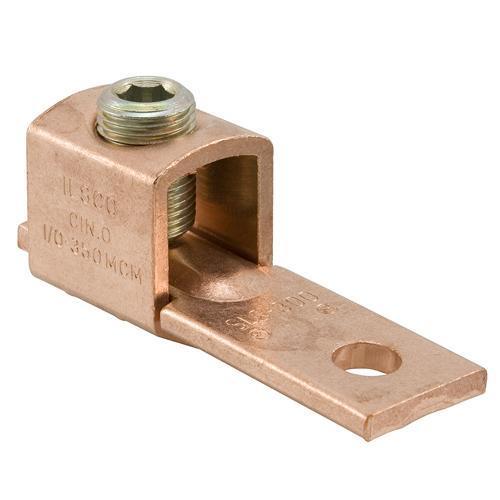

ILSCO® ClearChoice® SLS-300 1-Conductor Compact Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
Sku #78366982452
MFG #SLS-300
Attributes
| Type: | 1-Conductor Compact |
| Conductor Type: | Copper |
| Stud Size: | 3/8 in |
| Series: | SLS |
| Conductor Size: | 1/0 AWG to 350 kcmil |
| Number of Bolt Holes: | 1 |
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Provides maximum conductivity and strength
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Ensures reliability for copper conductor
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
- For terminating connector
- CSA File No. LR-29601|UL 486A/B/453G|E6207
