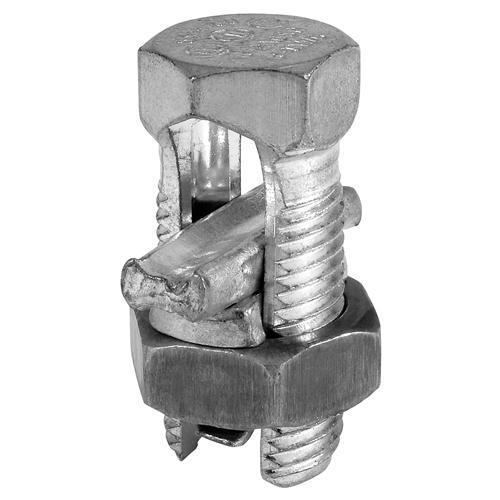

ILSCO® ClearChoice® SK-1/0 Type SK Split Bolt Connector, 6 to 1/0 AWG, 10 AWG ACSR/Compact/Compressed/Concentric/Solid Copper Conductor, 0.75 x 1.641 in, Copper Alloy
Sku #78366981908
MFG #SK-1/0
Attributes
| Type: | Type SK |
| Conductor Size: | 6 to 1/0 AWG, 10 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | ACSR/Compact/Compressed/Concentric/Solid Copper |
| Bolt Size: | 0.75 x 1.641 in |
| Specifications: | 0.376 in Split, 7/8 in Hex Nut, 385 in-lb Recommended Torque |
- Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques, tap connector and splice connector
- CSA Certified|UL File No. E12822|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Electro-tin plated bolt, nut, spacer and pressure bar provides low contact resistance
- For use with solid, compact, compressed, concentric copper conductors
- Precision tooled threads allows maximum torque to be applied
- For other aluminum applications consult factory
- Provides maximum conductivity and high breakage resistance
- Application versatility
- Proper high voltage spacing and insulation techniques must be used
