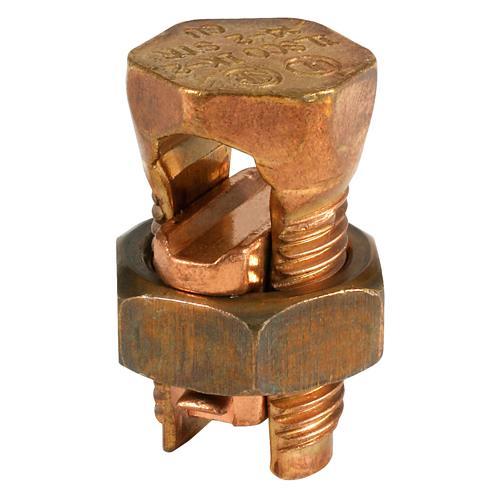

ILSCO® ClearChoice® IK3-8 Type IK3 3-Wire Split Bolt Connector, 12 to 8 AWG, 16 AWG Compact/Compressed/Concentric/Solid Copper Conductor, 0.844 x 0.375 in, Copper Alloy
Sku #78366981353
MFG #IK3-8
Attributes
| Type: | Type IK3 3-Wire |
| Conductor Size: | 12 to 8 AWG, 16 AWG |
| Voltage Rating: | 2000 V AC |
| Conductor Type: | Compact/Compressed/Concentric/Solid Copper |
| Bolt Size: | 0.844 x 0.375 in |
| Specifications: | 0.144 in Split, 1/2 in Hex Nut, 80 in-lb Recommended Torque |
- CSA Certified|RUS Certified|UL File No. E12822/467|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Precision tooled threads
- For use with copper conductor types solid, compact, compressed, concentric
- Suitable for direct burial in earth or concrete
- Application versatility
- Allows maximum torque to be applied
- Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
