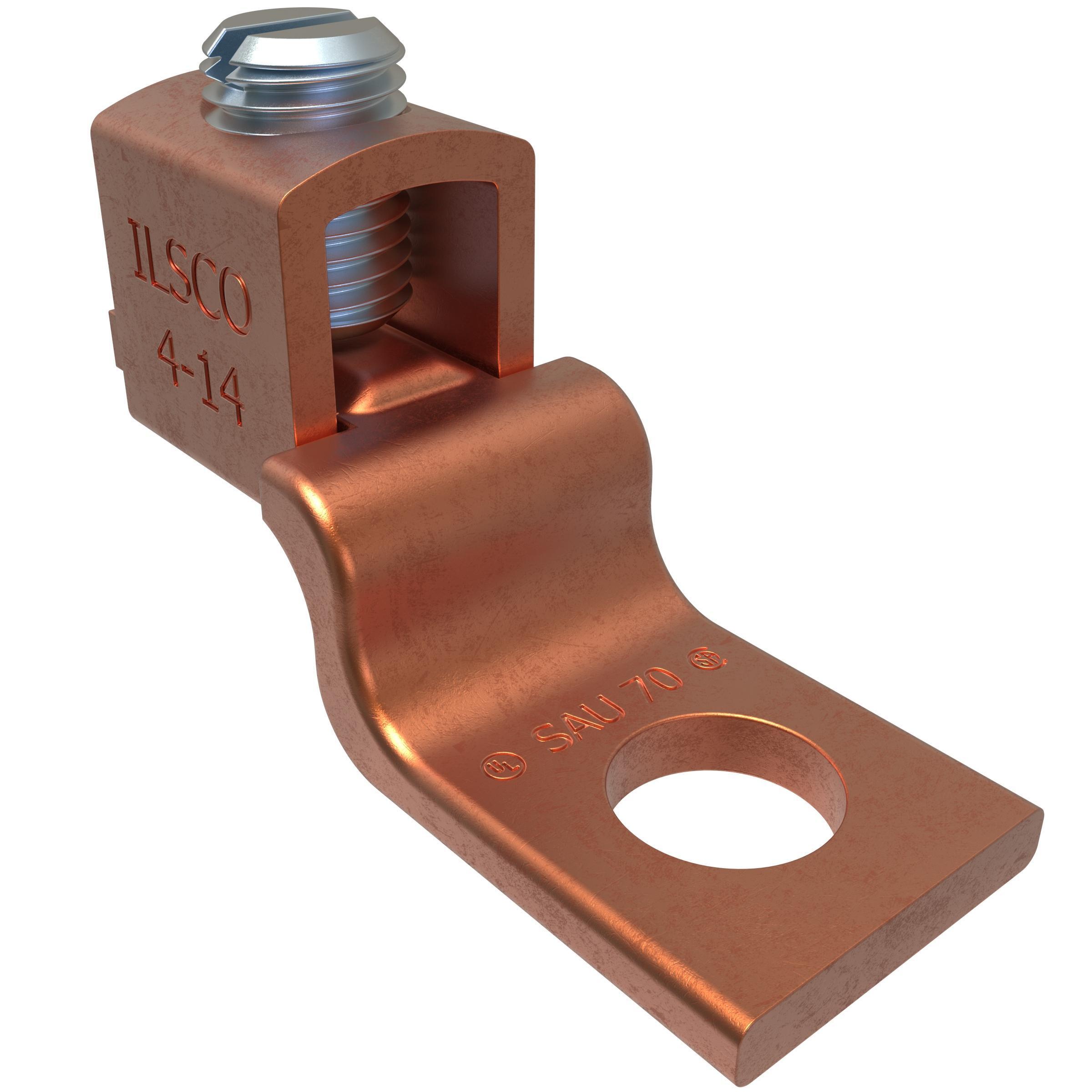

ILSCO® ClearChoice® SAU-70 Type SAU Mechanical Lug, 14 to 4 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
Sku #78366980633
MFG #SAU-70
Attributes
| Type: | Type SAU |
| Conductor Size: | 14 to 4 AWG |
| Number of Bolt Holes: | 1 |
| Conductor Type: | Copper |
| Stud Size: | 1/4 in |
| Tongue Size: | 0.5313 in L |
- CSA File No. LR-29601|UL 486A-B/E6207/453G
- Manufactured from electrolytic copper tubing and strip stock provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- V-bottom collar
- Re-usable
- Provides efficient use and flexibility in the field
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Contact factory for listed wire combinations
- A - UL listed combinations (2) 10 stranded or (2) 12 stranded or (2) 14 stranded or (1) 12 stranded and (1) 14 stranded or (1) 10 stranded and (1) 12 stranded
- (B) UL listed combinations (1) 8 stranded and (1) 4 stranded or (1) 8 stranded and (1) 6 stranded or (2) 4 stranded or (3) 8 stranded or (3) 6 stranded or (2) 8 stranded and (1) 4 stranded or (2) 8 stranded and (1) 6 stranded or (1) 6 stranded and (1) 4 stranded or (2) 6 stranded
- For copper conductor only
- 1-conductor
- 17/64 in mounting hole
- For terminating connector
