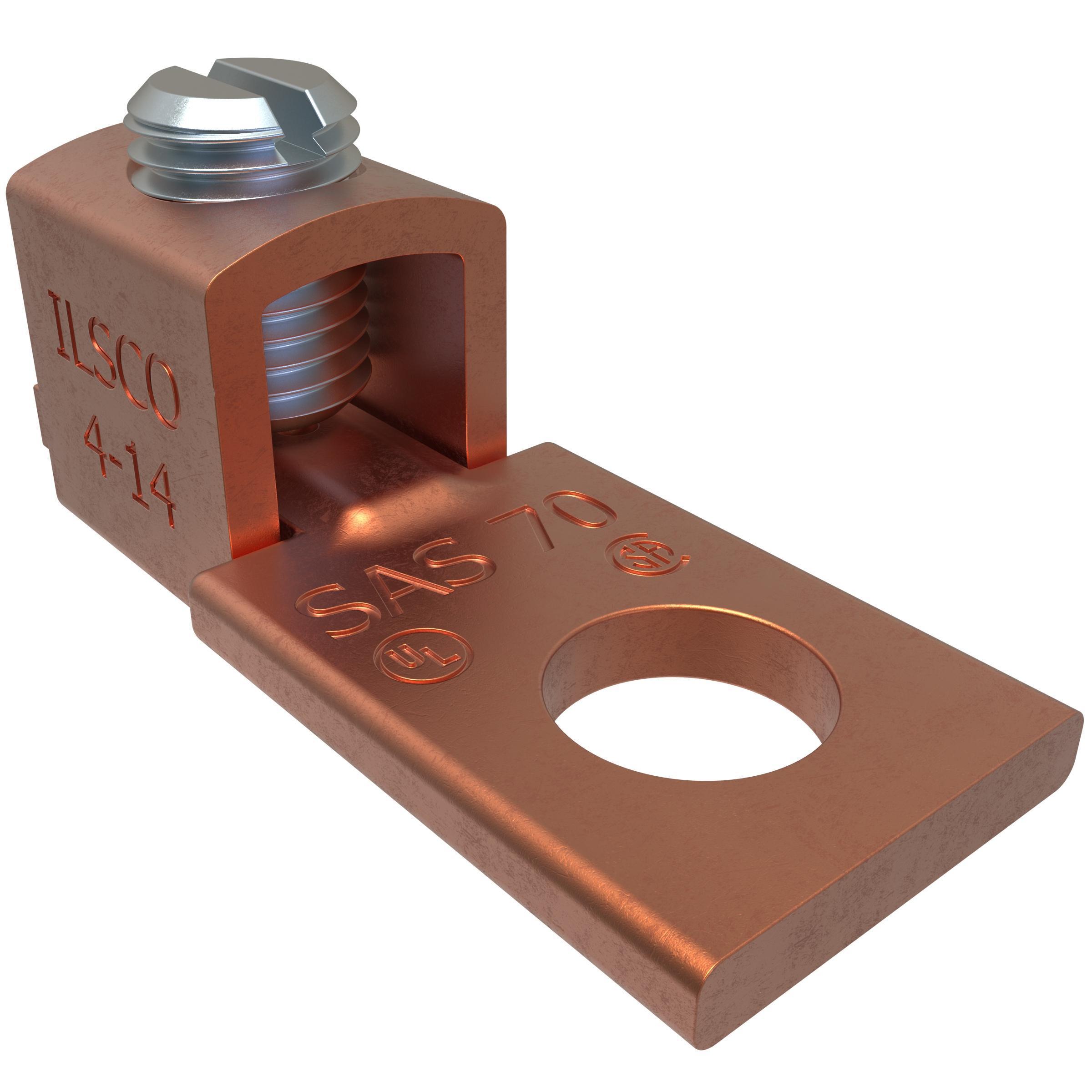

ILSCO® ClearChoice® SAS-70 1-Conductor Compact Mechanical Lug, 14 to 4 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper
Sku #78366980529
MFG #SAS-70
Attributes
| Type: | 1-Conductor Compact |
| Conductor Type: | Copper |
| Stud Size: | 1/4 in |
| Series: | SAS |
| Conductor Size: | 14 to 4 AWG |
| Number of Bolt Holes: | 1 |
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- A - UL listed combinations (2) 10 AWG or (2) 12 AWG stranded or (2) 14 AWG stranded or (1) 12 AWG stranded and (1) 14 AWG stranded or (1) 10 AWG stranded and (1) 12 AWG stranded conductor size
- B - UL listed combinations (1) 8 AWG stranded and (1) 4 AWG stranded or (1) 8 AWG stranded and (1) 6 AWG stranded or (2) 4 AWG stranded or (3) 8 AWG stranded or (3) 6 AWG stranded or (2) 8 AWG stranded and (1) 4 AWG stranded or (2) 8 AWG stranded and (1) 6 AWG stranded or (1) 6 AWG stranded and (1) 4 AWG stranded or (2) 6 AWG stranded
- V-bottom collar
- For terminating connector
- CSA File No. LR-29601|UL 486A/B/453G|E6207
