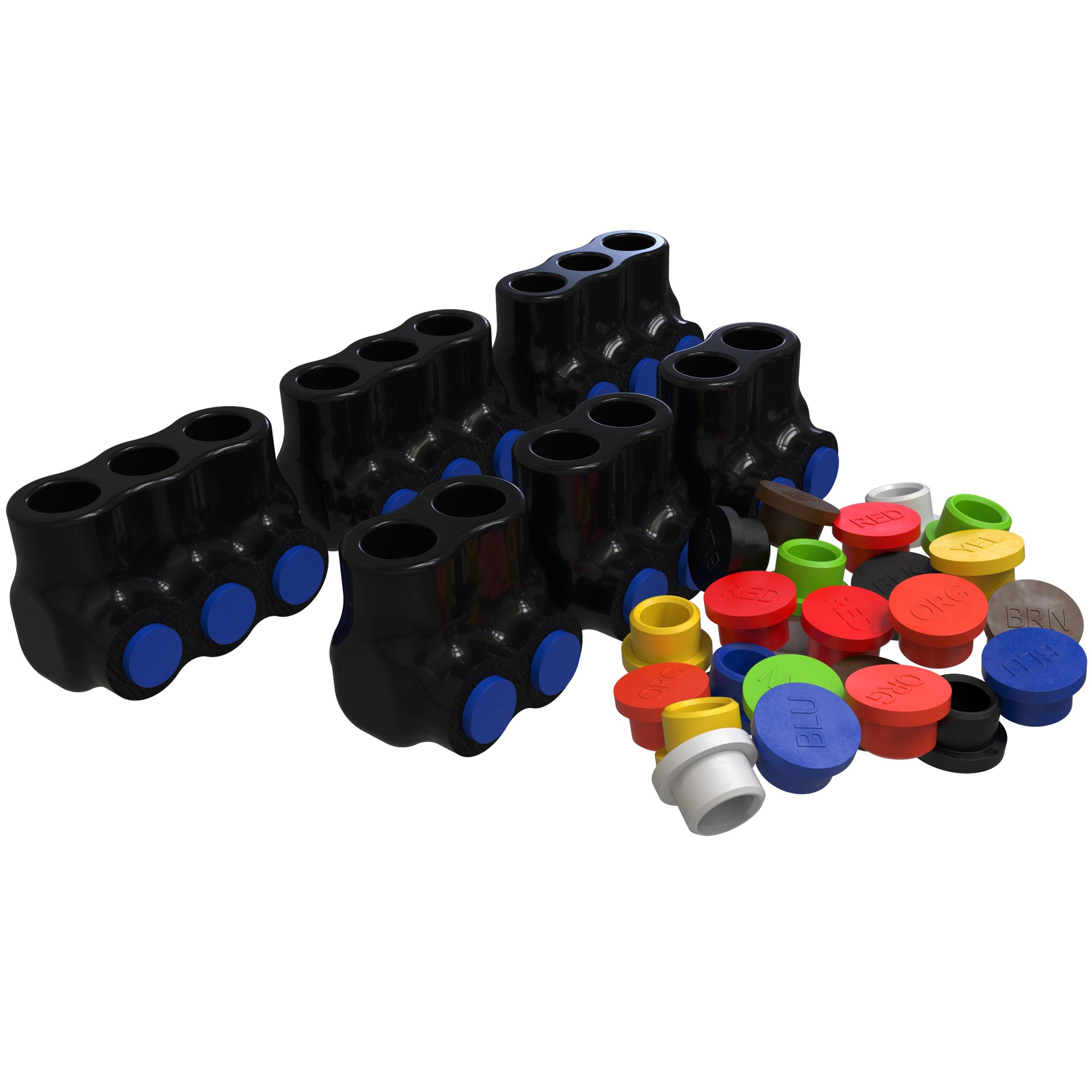

ILSCO® NIMBUS®4FLEX PBTFML-4-12-D-H Type PBTFML High Voltage Insulated Motor Kit, 14 to 4 AWG Aluminum/Flex Copper Conductor
Sku #78366974209
MFG #PBTFML-4-12-D-H
Attributes
| Type: | Type PBTFML High Voltage |
| Conductor Size: | 14 to 4 AWG |
| Specifications: | 95 A, 3-Phase, 12-Lead Connector, Delta Connection |
| Conductor Type: | Aluminum/Flex Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
- UL 486A/B/453G File No. E6207|CSA File No. LR29601|NEC 310-316|PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Supplied in pre-configured packs
- Simplifies megger testing of motors
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Dual rated for copper, copper flex or aluminum conductor
- Cold temperature rated to -45 deg C
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Flexible NIMBUS® screw caps are reflex blue for easy identification in the field
- Supplied with a bag of multi-colored screw caps for user configurable installations
- Pre-filled with De-ox®
