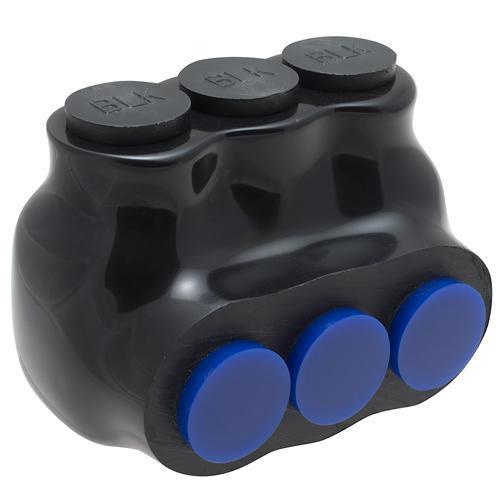

ILSCO® NIMBUS®4FLEX PBTI-3-4-F-BLK 3-Port Type PBTI Insulated Multi-Tap Connector, 14 to 4 AWG Aluminum/Flex Copper Conductor
Sku #78366974108
MFG #PBTI-3-4-F-BLK
Attributes
| Type: | 3-Port Type PBTI |
| Conductor Size: | 14 to 4 AWG |
| Specifications: | 3/16 in Hex |
| Conductor Type: | Aluminum/Flex Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Cold temperature rated to -45 deg C for application variability
- High dielectric strength plastisol is chemical resistant
- Removable plugs protect wire way from contamination
- Pre-filled with De-ox® oxide inhibiting compound prevents oxides from forming
- Flexible NIMBUS® caps are reflex blue for easy identification in the field
- Dual rated for copper, copper flex or aluminum conductor
- Simplifies motor wire up
- UL 486A/B/453G File No. E6207|CSA File No. LR29601|NEC 310-316|PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.gov
