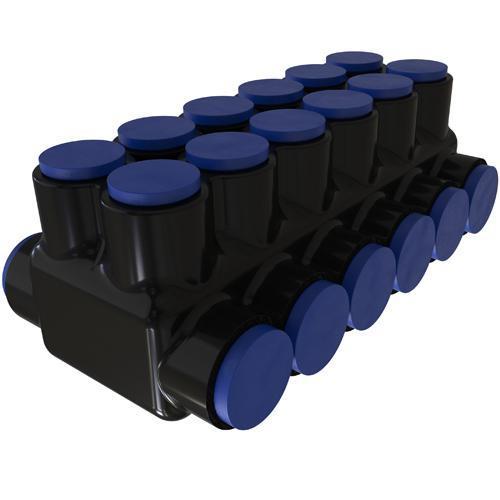

ILSCO® NIMBUS®4FLEX PBT2-12-600-F 12-Port Type PBT2 Dual Sided Entry Insulated Multi-Tap Connector, 4 AWG to 600 kcmil Aluminum/Flex Copper Conductor
Sku #78366972869
MFG #PBT2-12-600-F
Attributes
| Type: | 12-Port Type PBT2 Dual Sided Entry |
| Conductor Size: | 4 AWG to 600 kcmil |
| Specifications: | 3/8 in Hex |
| Conductor Type: | Aluminum/Flex Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
- Fully rated per NEC so all wire ports can be used
- Line side is isolated from load side by wire stop that allows mixed classes of conductor
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Dual rated for copper, copper flex or aluminum conductor
- High dielectric strength plastisol is chemical resistant
- Pre-filled with De-ox® oxide inhibiting compound prevents oxides from forming
- NIMBUS® 4 flex caps are reflex blue for ease of identification in the field
- Cold temperature rated to -45 deg C
- UL 486A/B File No. E6207|cULus 453G|NEC 310-316|CSA Certified|PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.gov
