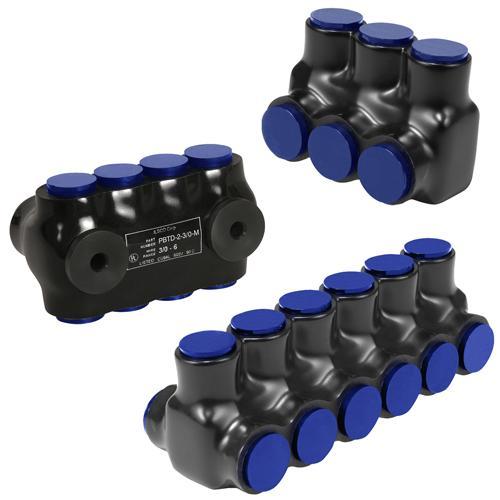

ILSCO® NIMBUS®4FLEX PBTS-3-500-F 3-Port Type PBTF Single Sided Entry Insulated Multi-Tap Connector, 4 AWG to 600 kcmil Aluminum/Flex Copper Conductor
Sku #78366972506
MFG #PBTS-3-500-F
Attributes
| Type: | 3-Port Type PBTF Single Sided Entry |
| Conductor Size: | 4 AWG to 600 kcmil |
| Specifications: | 95/475 A, 3/8 in Hex |
| Conductor Type: | Aluminum/Flex Copper |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
- UL 486A/B/453G File No. E6207|CSA File No. LR29601|NEC 310-316|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Dual rated for copper, copper flex or aluminum conductor
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Flexible NIMBUS® caps are reflex blue for easy identification in the field
- Pre-filled with De-ox®
- Cold temperature rated to -45 deg C
