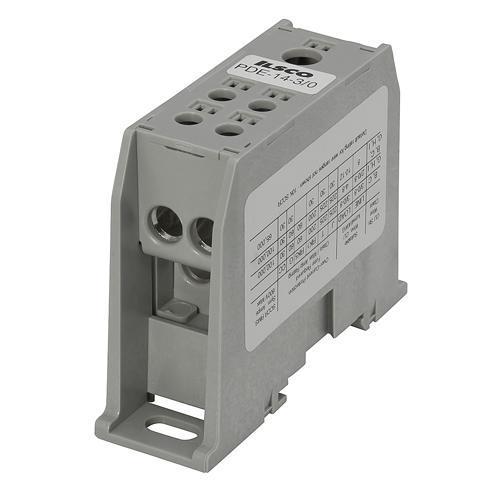

ILSCO® ClearChoice® PDE-14-3/0 Type PDE Dual Rated Power Distribution Block, 600 V AC, 200 A, 1 Pole, 14 to 3/0 AWG, 14 to 2 AWG Wire, Aluminum Alloy
Sku #78366971779
MFG #PDE-14-3/0
Attributes
| Type: | Type PDE Dual Rated |
| Amperage Rating: | 200 A |
| Primary Connections/Pole: | 1 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Secondary Connection/Pole: | 4 |
- Tap Connector Applications
- Ensures reliability
- Provides low contact resistance
- For use with building code or fine stranded (flexible) conductor
- Suitable for use with either copper or aluminum conductors
- 6 mm hex primary, 4 mm hex secondary
- High short circuit current rating (SCCR) with fuse protection up to 100000 SYM amps
- Range taking for reduced inventories and flexibility
- (1) box lug primary, (4) box lug secondary
- 75 deg C temperature rating
- 14 to 3/0 AWG primary and 14 to 2 AWG secondary wire
- Enclosed block provides IP20 touch protection
- Manufactured from high strength 6061-T6 aluminum alloy
- CSA File No. LR29601|UL 1953 File No. E84782/E112158|CE Marked|IEC 60947-7-1|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
