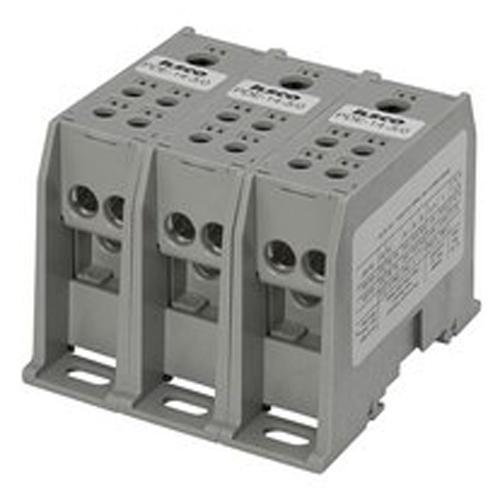

ILSCO® ClearChoice® PDE-11-3/0 Type PDE Power Distribution Block, 600 V AC/DC, 200 A, 1 Pole, 14 to 3/0 AWG Line/Load Wire, Aluminum Alloy
Sku #78366971777
MFG #PDE-11-3/0
Attributes
| Type: | Type PDE |
| Amperage Rating: | 200 A |
| Primary Connections/Pole: | 1 |
| Voltage Rating: | 600 V AC/DC |
| Number of Poles: | 1 |
| Secondary Connection/Pole: | 1 |
- Enclosed block provides IP20 touch protection
- Manufactured from high strength aluminum
- High short circuit current rating (SCCR) with fuse protection up to 100000 SYM A
- Range taking for reduced inventories and flexibility
- Dual rated for copper and aluminum conductor
- Ensures reliability
- Provides low contact resistance
- Added protection
- (1) 14 to 3/0 AWG line/load conductor range
- (1) 8 to 3/0 AWG line/load high SCCR conductor range
- For use with building code or fine stranded (flexible) conductors
- CSA File No. LR-29601|UL File No. E84782|UL 1953|CE Certified to IEC 60947-7-1|PROP65: it is not known to contain any chemicals associated with this regulation
