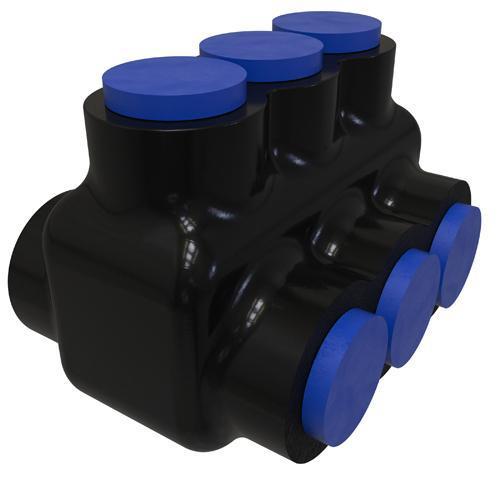

ILSCO® Nimbus4flex® PBTD-3-1/0-F Type PBTF 2-Sided Entry 3-Port Dual Rated Insulated Flexible Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
Sku #78366971256
MFG #PBTD-3-1/0-F
Attributes
| Type: | Type PBTF 2-Sided Entry 3-Port Dual Rated Insulated |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | -45 to 90 deg C |
| Conductor Type: | Aluminum/Copper |
| Specifications: | 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A |
| Material: | Aluminum |
- Broad wire range 14 AWG to 350 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Chemical and vibration resistant
- Incoming and outgoing conductors must be staggered
- 14 to 1 AWG H, I, K, DLO 14 to 2 AWG M conductor size
- Improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
- Flexible NIMBUS® caps are Reflex Blue for easy identification in the field
- Re-usable patented screw design doesn't require wire sleeve
- CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
