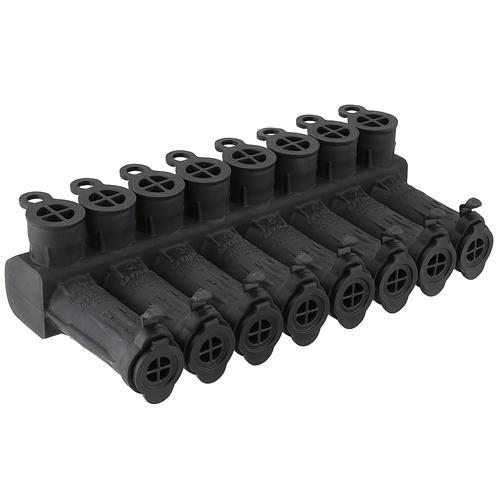

ILSCO® SafetySub® PED8-350SS-DB Type PED-SS 8-Port Dual Rated Watertight Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
Sku #78366971230
MFG #PED8-350SS-DB
Attributes
| Type: | Type PED-SS 8-Port Dual Rated Watertight |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | 90 deg C |
| Conductor Type: | Aluminum/Copper |
| Specifications: | 10 AWG to 350 kcmil Wire |
| Material: | Aluminum |
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
- Pre-filled with DE-OX® oxide inhibiting compound
- Re-sealable and tethered wire ports
- No taping required
- For direct burial in earth and hand holes
- ANSI 119.1/119.4|CSA File No. LR29601|UL File No. E125087/486D/88X4|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
