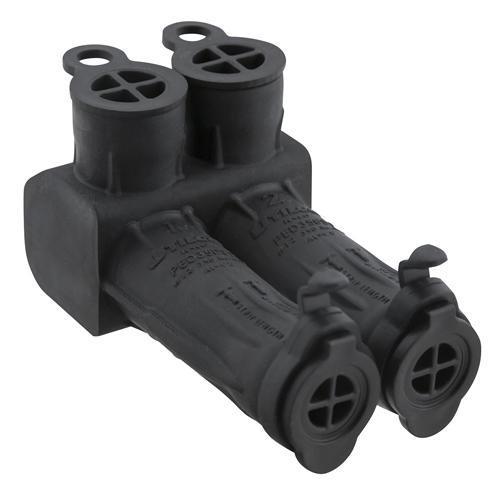

ILSCO® Safetysub ® PED2-350SS-DB Type PED-SS Insulated Multiple Tap Connector, Copper/Aluminum Conductor, Aluminum Alloy
Sku #78366971219
MFG #PED2-350SS-DB
Attributes
| Type: | Type PED-SS Insulated |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | 90 deg C |
| Conductor Type: | Copper/Aluminum |
| Specifications: | 2-Port, 12 AWG to 350 kcmil Conductor |
| Material: | Aluminum Alloy |
- For direct burial and hand holes and tap connector
- Manufactured from high strength aluminum alloy provides maximum conductivity
- Range taking for reduced inventory needs
- Electro tin plated provides low contact resistance
- Dual rated for use with both copper and aluminum conductors
- Encapsulation meets or exceeds dielectric strength of 240 VAC per mil, specifically formulated for electrical waterproofing requirements
- Re-sealable and tethered wire ports, completely watertight, no taping required
- Prefilled with DE-OX® oxide inhibiting compound, protects contact area and prevents oxides from forming
- CSA File No. LR29601|UL 88X4/486D File No. E125087|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
