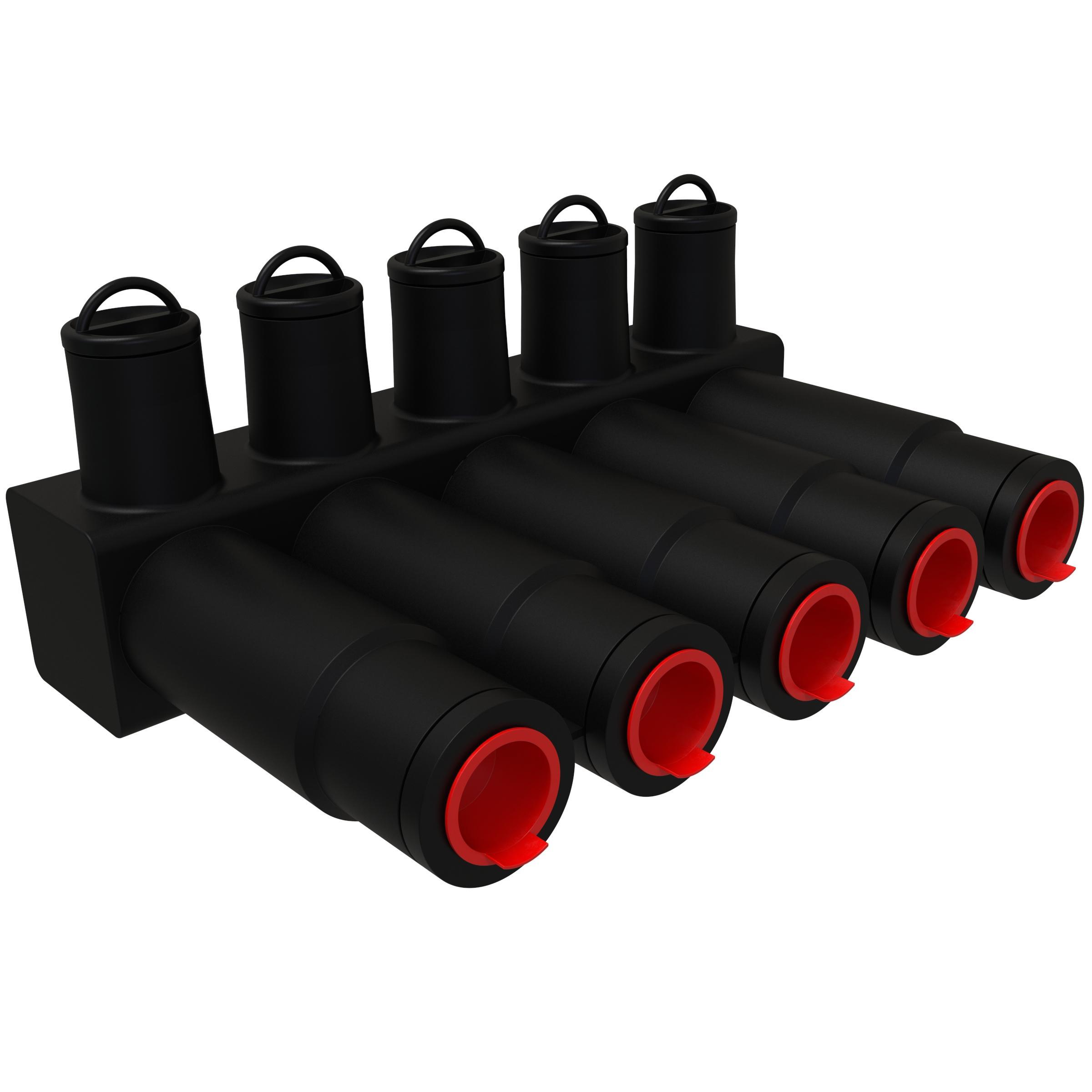

ILSCO® SafetySub® PED-5-500-SS-Z Type PED-SS 4-Port Dual Rated Watertight Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
Sku #78366971206
MFG #PED-5-500-SS-Z
Attributes
| Type: | Type PED-SS 4-Port Dual Rated Watertight |
| Voltage Rating: | 600 V AC |
| Temperature Rating: | 90 deg C |
| Conductor Type: | Aluminum/Copper |
| Specifications: | 10 AWG to 500 kcmil Wire |
| Material: | Aluminum |
- ANSI 119.1/119.4|CSA Certified|UL File No. E125087/486D|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- For direct burial in earth and hand holes
- Connector fabricated from high strength aluminum alloy 6061-T6
- Clean plated for low contact resistance
- EPDM cover has dielectric strength of 240 VAC/mil with nominal thickness is 125 mil
- Provides low contact resistance
- Provides maximum conductivity
- Specifically formulated for electrical waterproofing requirements
