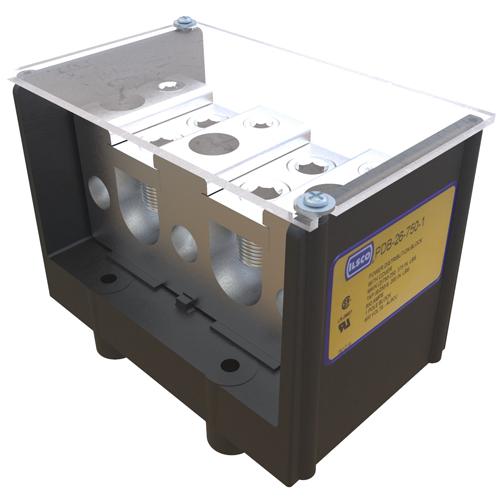

ILSCO® ClearChoice® PDB-26-750-1 Type PDB Dual Rated Mechanical Power Distribution Block, 600 V AC, 950 A, 1 Pole, 250 to 750 kcmil, 6 AWG to 250 kcmil Wire, Aluminum Alloy
Sku #78366971144
MFG #PDB-26-750-1
Attributes
| Type: | Type PDB Dual Rated Mechanical |
| Amperage Rating: | 950 A |
| Primary Connections/Pole: | 2 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Secondary Connection/Pole: | 6 |
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 1/4 in hex secondary
- 90 deg C temperature rating
- Block W
- (2) box lug primary, (6) box lug secondary
- 250 to 750 kcmil primary and 6 AWG to 250 kcmil secondary wire size
- Valox® insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
- CSA File No. LR29601|UL 1059|UL 1953|UL 486A-B File No. E84782/E112158|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Tap Connector Applications
