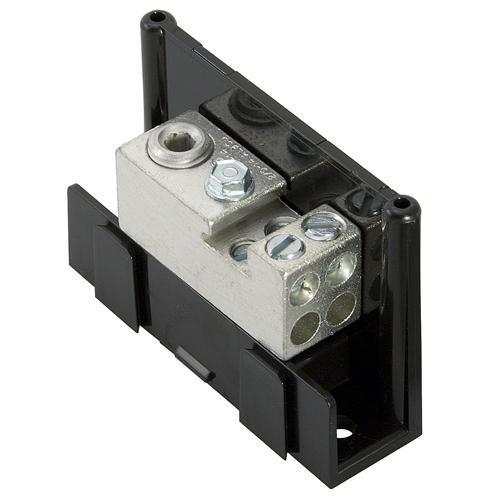

ILSCO® ClearChoice® PDA-14-2/0-1 Type PDA Dual Rated Pole Adder Power Distribution Block, 600 V AC, 175 A, 14 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
Sku #78366971130
MFG #PDA-14-2/0-1
Attributes
| Type: | Type PDA Dual Rated Pole Adder |
| Amperage Rating: | 175 A |
| Secondary Connection/Pole: | 4 |
| Voltage Rating: | 600 V AC |
| Primary Connections/Pole: | 1 |
| Wire Size: | 14 to 2/0 AWG, 14 to 4 AWG |
- Tap Connector Applications
- Modular design-simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job
- Easy to assemble unique locking feature allows individual blocks to be combined quickly without special tools
- Electro tin plated provides low contact resistance
- Lexan insulating base - provides a high degree of impact resistance with superior insulating qualities
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- PDA are added to PDC to obtain a multi-pole block
- 90 deg C temperature rating
- UL assigned short circuit current rating 10000 A
- 3/16 in hex primary, slot hex secondary
- (1) box lug primary, (4) box lug secondary
- 14 to 2/0 AWG primary and 14 to 4 AWG secondary wire
- Modular design for ease of assemble
- UL assigned short circuit current rating
- Lexan® insulating base
- CSA File No. LR29601|UL 1953 File No. E84782|ECCN EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
