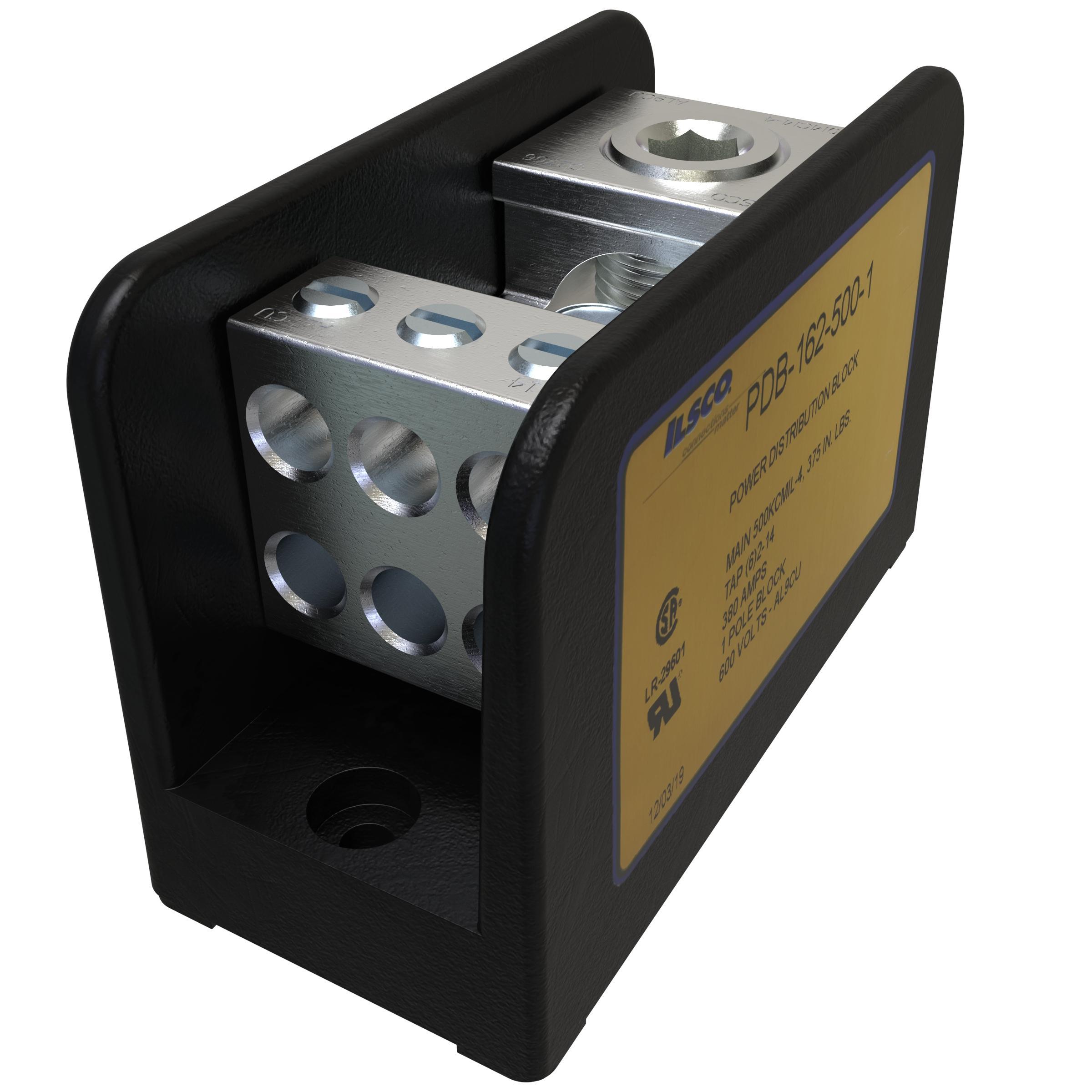

ILSCO® ClearChoice® PDB-162-500-1 Type PDB Dual Rated Power Distribution Block, 600 V AC, 380 A, 1 Pole, 4 AWG to 500 kcmil, 14 to 2 AWG Wire, Aluminum
Sku #78366971122
MFG #PDB-162-500-1
Attributes
| Type: | Type PDB Dual Rated |
| Amperage Rating: | 380 A |
| Primary Connections/Pole: | 1 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 1 |
| Secondary Connection/Pole: | 6 |
- Multiple taps - Depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Valox® insulating base - provides a high degree of impact resistance with superior insulating qualities
- Electro-tin plated provides low contact resistance
- Dual rated for aluminum and copper conductor except for pdbu-55-600-1 and pdb-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL Recognized rated 90 deg C and is CSA Certified, rated for 600 V - ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/16 in secondary
- Block M
- (1) box lug primary, (6) box lug secondary
- 4 AWG to 500 kcmil primary and 14 to 2 AWG secondary wire size
- For use with tap connector
- CSA File No. LR-29601|UL 1059/1953|E84782/E112158/486A/B|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
