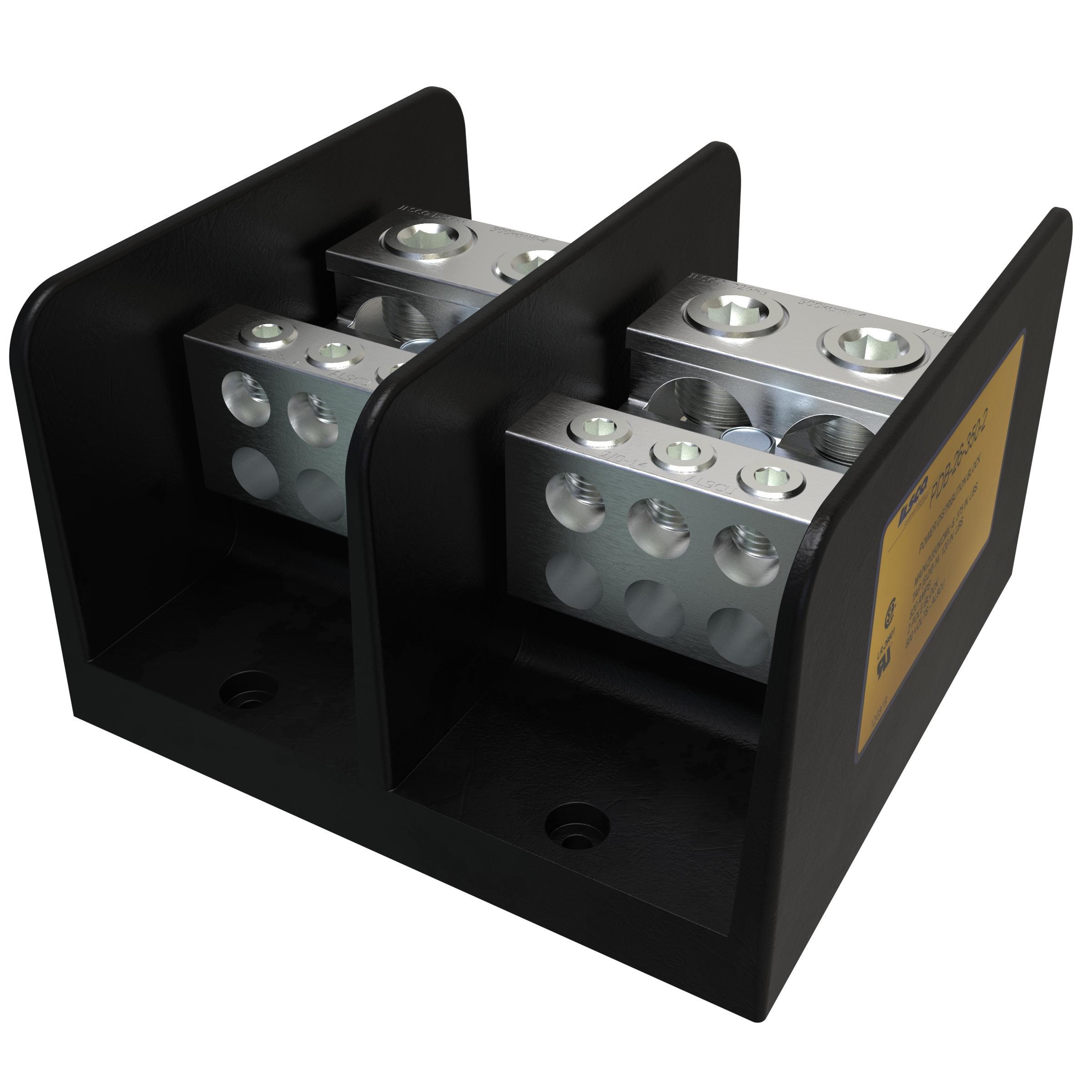

ILSCO® ClearChoice® PDB-26-500-2 Type PDB Large Size Mechanical Power Distribution Block, 600 V AC, 760 A, 2 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, Aluminum
Sku #78366971051
MFG #PDB-26-500-2
Attributes
| Type: | Type PDB Large Size Mechanical |
| Amperage Rating: | 760 A |
| Primary Connections/Pole: | 2 |
| Voltage Rating: | 600 V AC |
| Number of Poles: | 2 |
| Secondary Connection/Pole: | 6 |
- For use with tap connector
- CSA File No. LR-29601|UL 1059|E84782|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Multiple taps - Depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Valox® insulating base - Provides a high degree of impact resistance with superior insulating qualities
- Electro-tin plated provides low contact resistance
- Dual rated for aluminum and copper conductor except for pdbu-55-600-1 and pdb-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - Suitable for use with either copper or aluminum conductors
- UL Recognized rated 90 deg C and is CSA Certified, rated for 600 V - ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- Valox® insulating base
- 90 deg C temperature rating
- Hex size primary 3/8 mm/in
- (2) box lug primary, (6) box lug secondary
- 4 AWG to 500 kcmil primary and 14 to 2/0 AWG secondary wire size
