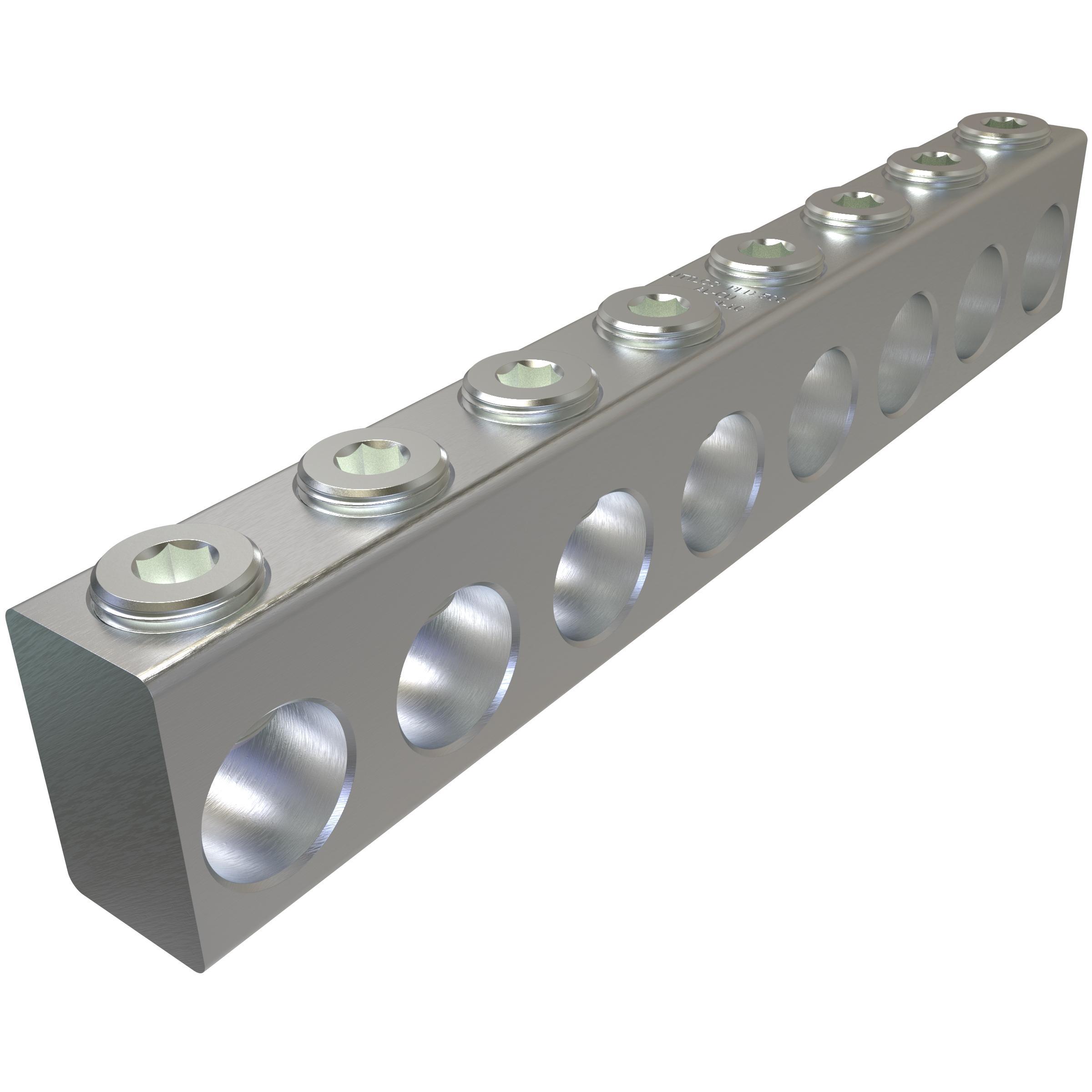

ILSCO® ClearChoice® PED-8-500-X Type PED-X 8-Conductor Dual Rated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
Sku #78366969925
MFG #PED-8-500-X
Attributes
| Type: | Type PED-X 8-Conductor Dual Rated |
| Voltage Rating: | 2000 V AC |
| Material: | Aluminum |
| Conductor Type: | Aluminum/Copper |
| Specifications: | 10 AWG to 500 kcmil Wire, 5/16 in Hex, 450 in-lb Torque |
| Dimensions: | 9-11/16 in L x 1 in W x 1-5/8 in H |
- Manufactured from high strength 6061-T6 aluminum for use with copper or aluminum wire
- Range taking for reduced inventories and flexibility
- Compact design
- Plastisol insulating cover available with a nominal thickness of 156 mil and dielectric strength of 120 V/mil
- Provides multiple conductor installation for a wide range of conductors
- Eliminates the need for taping
- DE-OX® inhibitor is recommended for all aluminum terminations
- UL Listed|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
