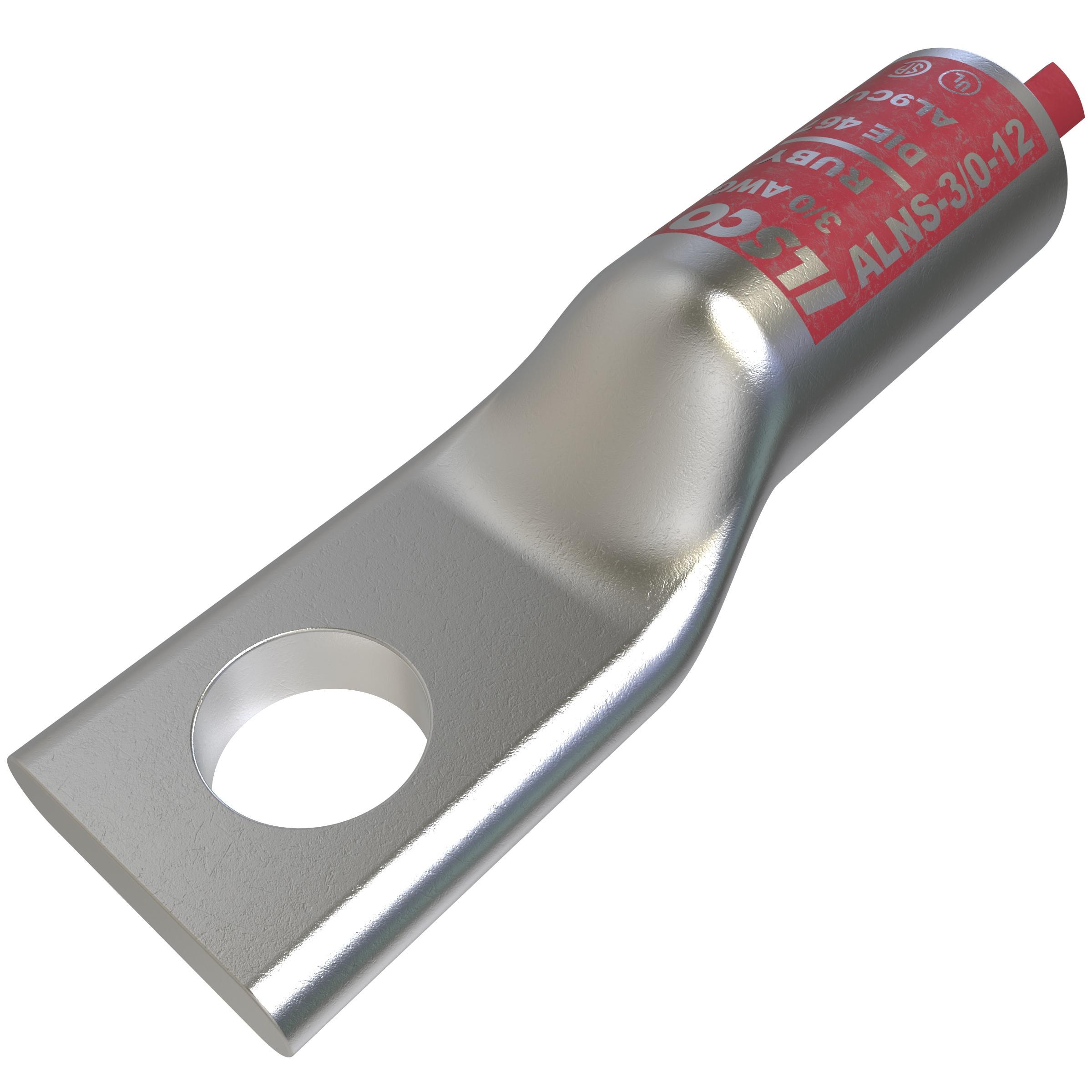

ILSCO® SureCrimp® ALNS-3/0-12 1-Hole Type ALNS Lug Compression Connector, 1 to 3/0 AWG Aluminum/Copper Conductor, Die Code: 467, 1/2 in Stud, Aluminum Alloy
Sku #78366969161
MFG #ALNS-3/0-12
Attributes
| Type: | 1-Hole Type ALNS |
| Conductor Size: | 1 to 3/0 AWG |
| Stud Size: | 1/2 in |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 467 |
| Tongue Size: | 1.28 in L x 1.044 in W x 0.266 in THK |
- Terminating Connector
- UL 486A/B/453G File No. E6207|CSA File No. LR29601
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
