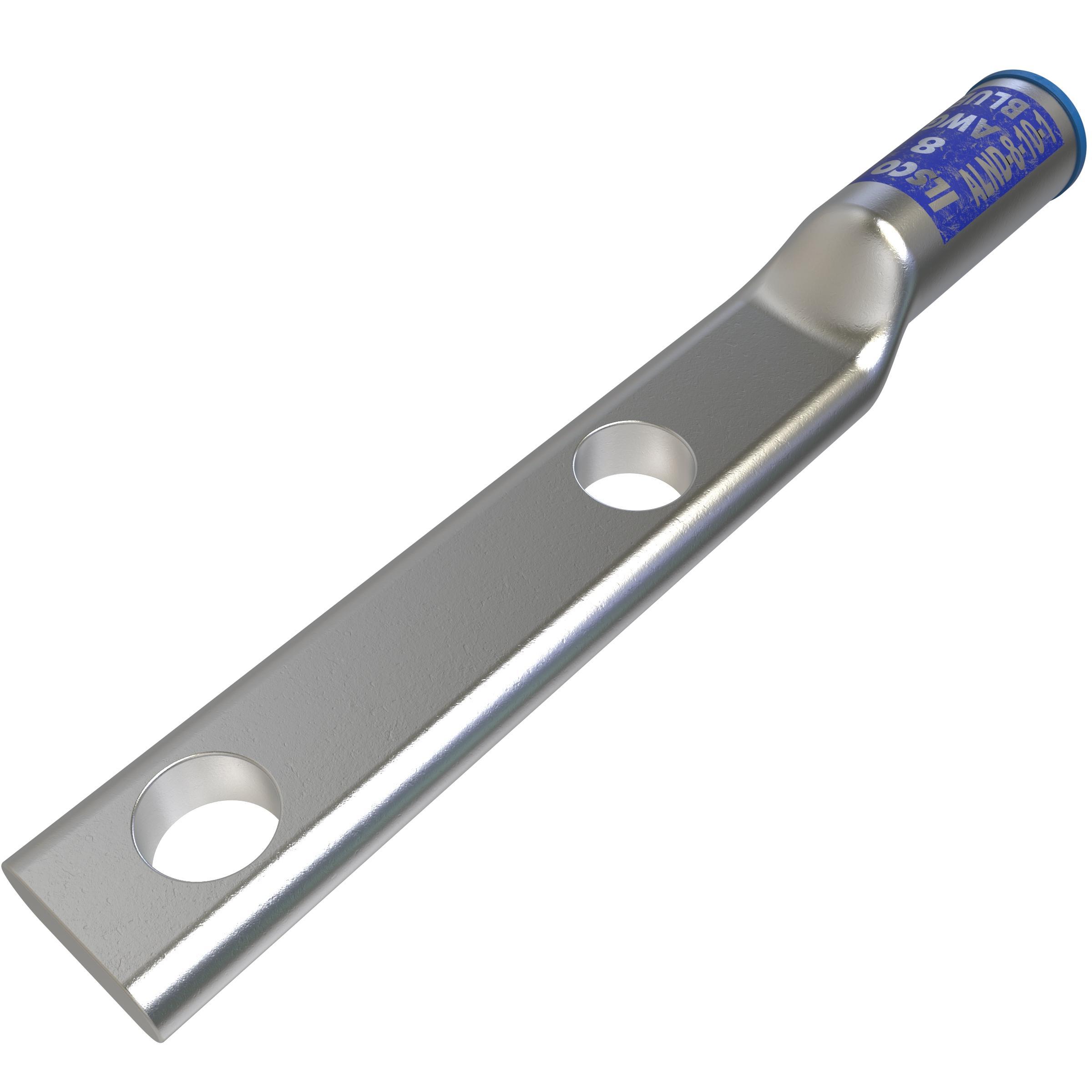

ILSCO® SureCrimp® ALND-8-10-1 2-Hole Type ALND Lug Compression Connector, 8 AWG Aluminum/Copper Conductor, Die Code: 374, #10 Stud, Aluminum Alloy
Sku #78366969082
MFG #ALND-8-10-1
Attributes
| Type: | 2-Hole Type ALND |
| Conductor Size: | 8 AWG |
| Voltage Rating: | 600 V AC |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 374 |
| Stud Size: | #10 |
- Terminating Connector
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
- UL 486A/B/453G File No. E6207|CSA File No. LR29601
