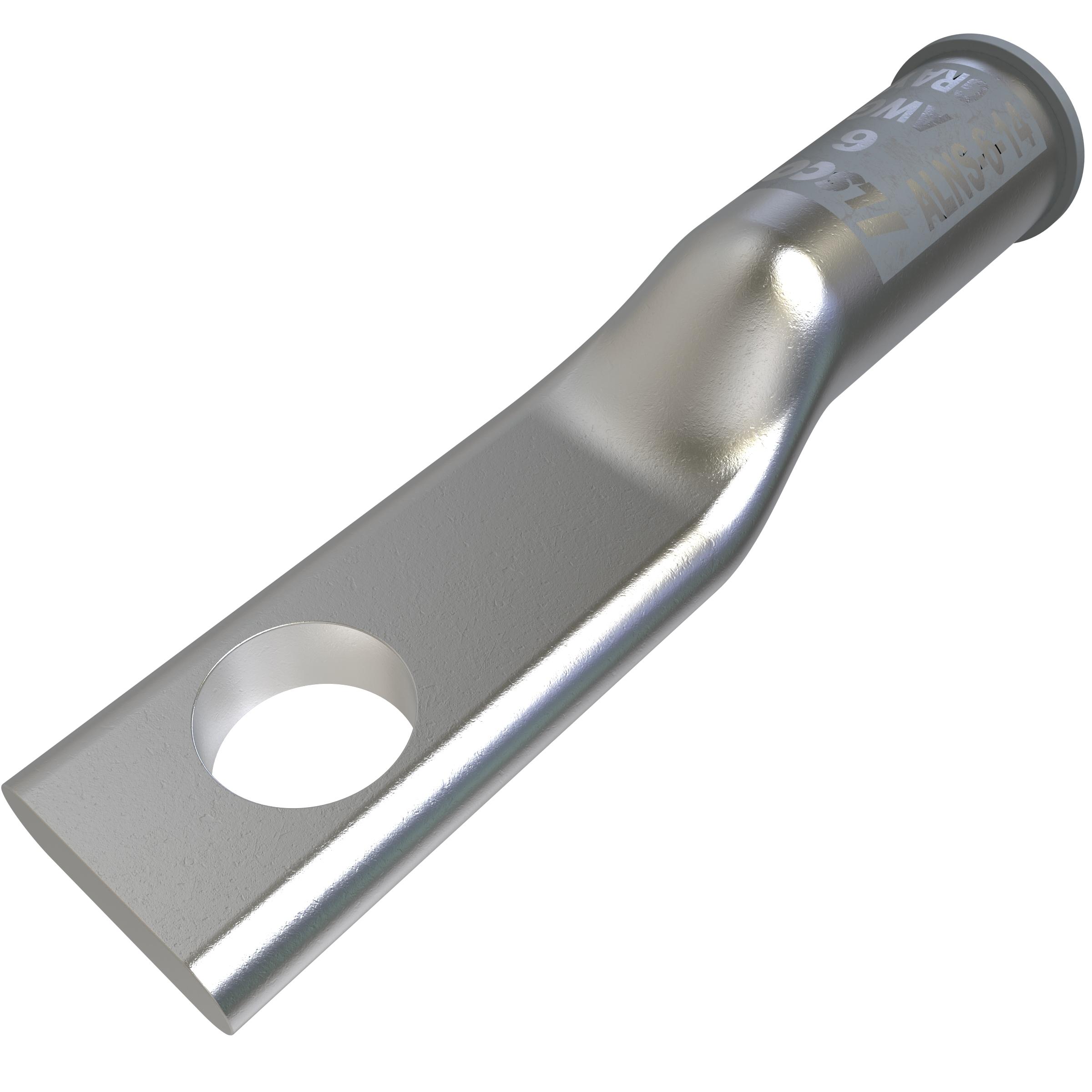

ILSCO® SureCrimp® ALNS-6-14 ALNS 1-Hole Compression Connector Lug, 6 AWG Aluminum/Copper Conductor, Die Code: 346, 1/4 in Stud, Aluminum
Sku #78366969044
MFG #ALNS-6-14
Attributes
| Type: | 1-Hole |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 346 |
| Series: | ALNS |
| Conductor Size: | 6 AWG |
| Stud Size: | 1/4 in |
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated provides low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- For terminating connector
- UL 486A/B File No. E6207|CSA File No. LR29601|ECCN EAR99
