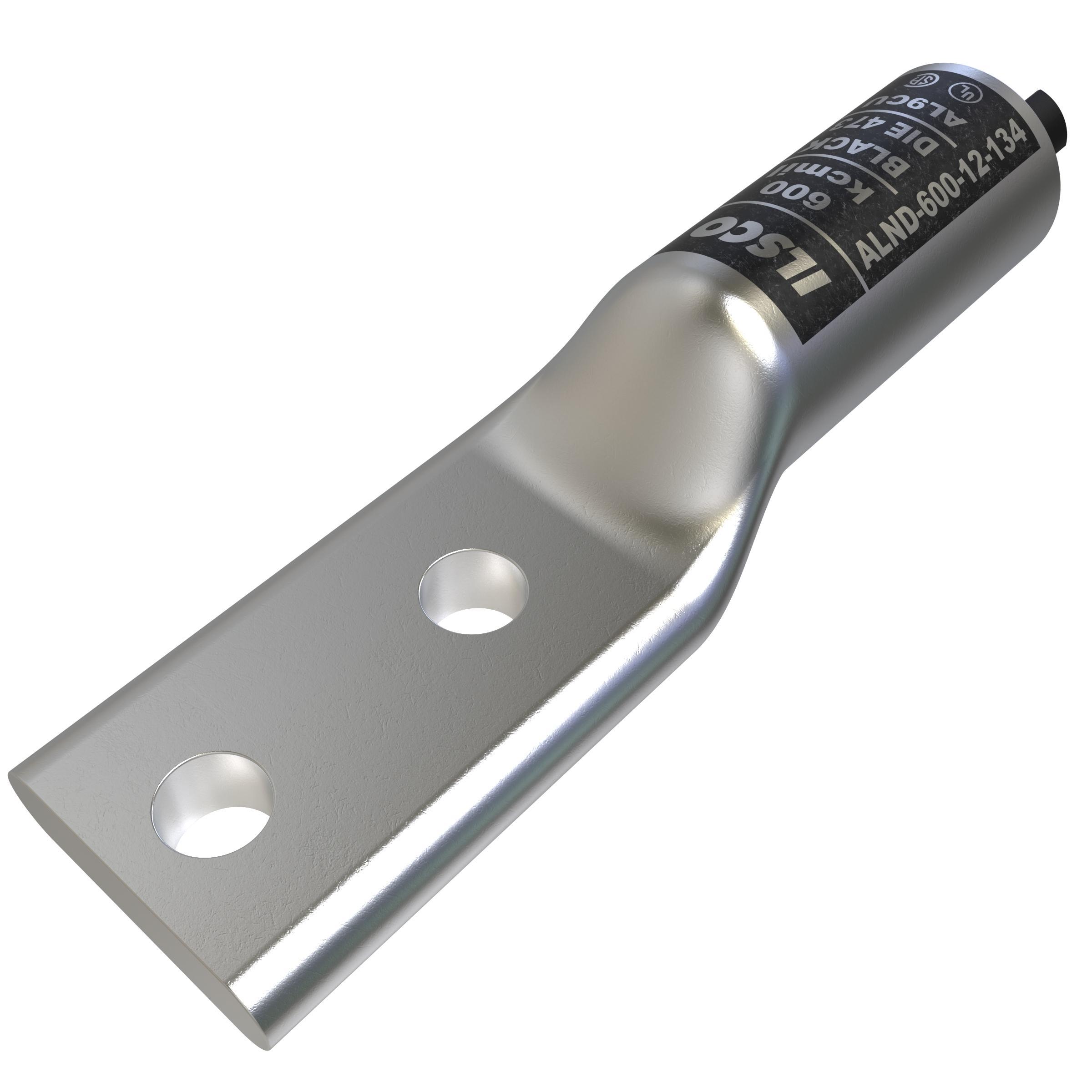

ILSCO® SureCrimp® ALND-600-12-134 ALND 2-Hole Compression Connector Lug, 250 to 600 kcmil Aluminum/Copper Conductor, Die Code: 473, 1/2 in Stud, Aluminum
Sku #78366968775
MFG #ALND-600-12-134
Attributes
| Type: | 2-Hole |
| Conductor Type: | Aluminum/Copper |
| Die Code: | 473 |
| Series: | ALND |
| Conductor Size: | 250 to 600 kcmil |
| Voltage Rating: | 600 V AC |
- For terminating connector
- UL 486A/B File No. E6207|CSA File No. LR29601|ECCN EAR99
- Manufactured from high strength 1350 aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro tin plated provides low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox® prevents oxide from forming
- Dual rated for aluminum and copper conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size with ILSCO dieless tools and Burndy Y644M dieless tool
- Narrow tongue width for limited space application
- Long barrel length with chamfered entry
