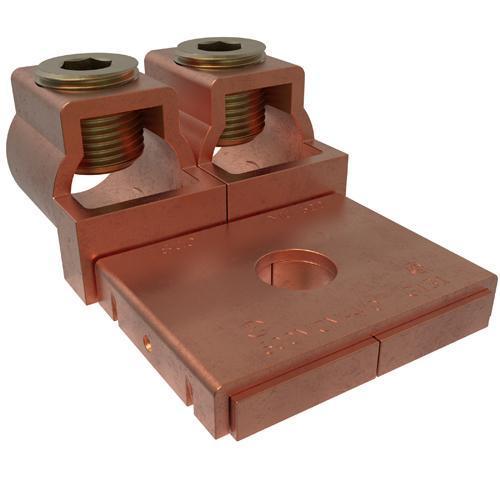

ILSCO® ClearChoice® MU-600 Type MU Mechanical Lug, 4/0 AWG to 600 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper
Sku #78366968407
MFG #MU-600
Attributes
| Type: | Type MU |
| Conductor Size: | 4/0 AWG to 600 kcmil |
| Number of Bolt Holes: | 1 |
| Conductor Type: | Copper |
| Stud Size: | 1/2 in |
| Tongue Size: | 1-13/16 in L |
- UL 453G/486A/B/File No. E6207|CSA File No. LR29601
- Manufactured from electrolytic copper tubing and strip stock provides maximum conductivity and strength
- Compact design saves space and reduces installation time
- Range taking permits inventories to be kept to a minimum
- Re-usable provides efficient use and flexibility in the field
- V-bottom collar (type LU) wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
